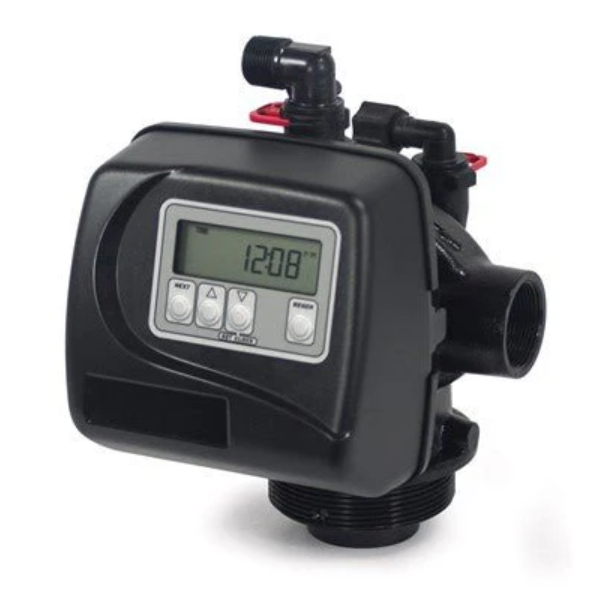

• 1.5″ top mount control valve suited for mid-size commercial/industrial applications
• Glass filled composite
• Economical plastic optional meter assembly
• Service flow rate of 227 lpm (13.6 m3/h) (60 gpm), backwash 163 lpm (9.8 m3/h) (43 gpm)
• Up flow/downflow brining field convertible
• Solid state microprocessor with easy access front panel settings
• Front panel display for time of day, days until next regeneration, volume remaining and current flow rate
• Four methods to initiate a regeneration; meter immediate, meter delayed, time clock delayed or pressure differential
• Program in ppm, French degrees, German degrees, or cubic meters
• Fully programmable regeneration cycle sequence (maximum 9)
• Programmable regeneration cycle times
• Days override feature; 1-28 days available
• Level VI 15-volt output DC power supply provides safe and easy installation
• Pre or post treated water regenerant refill
• Low salt alarm
• Coin cell lithium battery backup for time of day up to 24 hours
• One piece expanding seal spacer stack assembly
• Linearly reciprocating piston operation
• Reliable and proven DC drive
