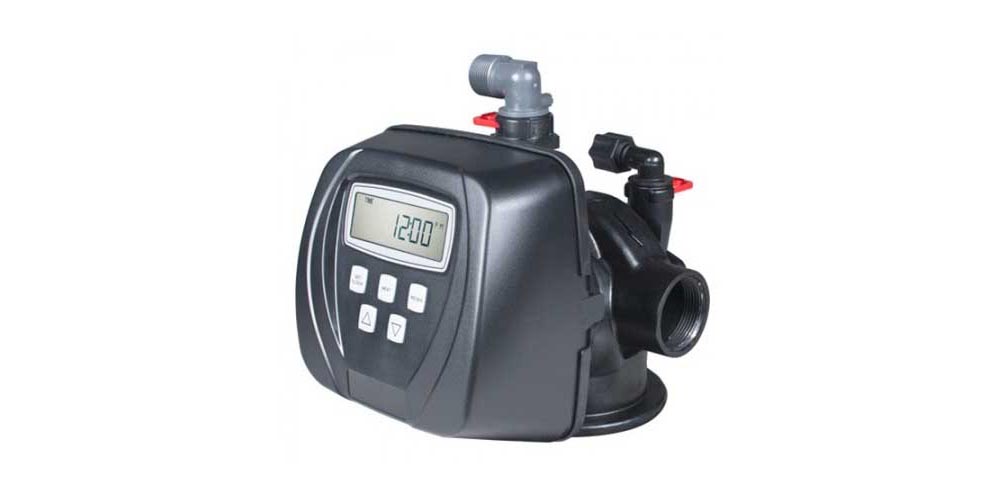

• 1.5″ top mount control valve suited for mid-size commercial/industrial applications
• Epoxy coated lead-free brass valve body*
• Economical stainless steel optional meter assembly
• Service flow rate of 265 lpm (15.9 m3/h) (70 gpm), backwash 197 lpm (11.8 m3/h) (52 gpm)
• Solid state microprocessor with easy access front panel settings
• Front panel display for time of day, days until next regeneration, volume remaining and current flow rate
• Four methods to initiate the downflow regeneration; meter immediate, meter delayed, time clock delayed or pressure differential
• Program in ppm, French degrees, German degrees, or cubic meters
• Fully programmable regeneration cycle sequence (maximum 9)
• Programmable regeneration cycle times
• Days override feature; 1-28 days available
• Level VI 15-volt output DC power supply provides safe and easy installation
• Pre or post treated water regenerant refill
• Low salt alarm
• 24-hour clock
• Coin Cell Lithium battery back-up with a 24 hour carry over
• One piece expanding seal spacer stack assembly
• Linearly reciprocating piston operation
• Reliable and proven DC drive
