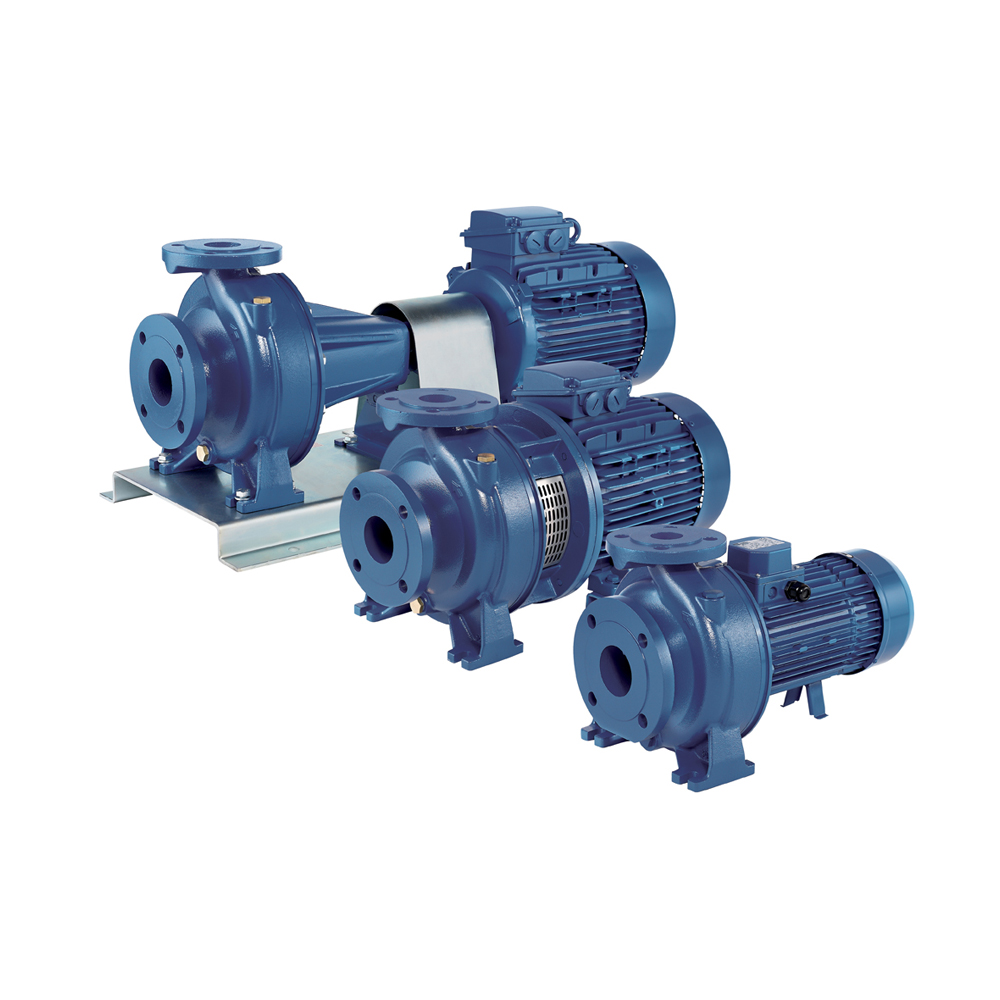

Part Number: 3D 65-160/156
| 1 | Pump type | CENTRIFUGAL PUMPS | Fluid | Water |
| 2 | Number of pumps / Reserve | 1 / 0 | Liquid temperature °C | 20 |
| 3 | Flow m³/h | Kin. viscosity mm²/s | 1.005 | |
| 4 | Head m | Vapour pressure bar | 0.0234 | |
| 5 | Geodetic head m | PH value | ||
| 6 | Inlet pressure (pin) bar | 0 | Density kg/m³ | 998.3 |
| 7 | Available system NPSH | Solids Weight % | 0 | |
| 8 | Ambient temperature °C | 20 |
| Booster Set | |||||
|---|---|---|---|---|---|
| 9 | Pump Name | 3D 65-160/156 | Frequency Hz | None | 60 |
| 10 | Design | CENTRIFUGAL PUMPS | Installation type | None | STANDARD |
| 11 | Manufacturer | EBARA | ImpellernDiameter | Max. mm | 157 |
| 12 | Speed rpm | 3480 | None | Designed mm | 157 |
| 13 | No. of Stage | 1 | None | Min. mm | 157 |
| 14 | Connection Suction side | UNI 2236-67 | Flow | Operating m³/h | |
| 15 | Connection Discharge side | EN 1092-2 | None | Max- m³/h | 132 |
| 16 | Max Working Pressure bar | 10 | None | Min- m³/h | 42 |
| 17 | Shut-off head bar | 4.75 | Head | Operating m | |
| 18 | Total weight kg | See the table of “Dimensions”. | None | – (Qmax.) m | 30.5 |
| 19 | Shaft power kW | None | – (Qmin.) m | 48.0 | |
| 20 | Max. Shaft Power at max. impeller kW | None | 14.79 | ||
| 21 | Required pump NPSH m | Efficiency % | None | ||
| Materials | ||||
|---|---|---|---|---|
| 22 | Impeller | AISI 316 | ||
| 23 | Casing | Cast iron | ||
| 24 | Shaft | AISI 304 (wet extension) | ||
| 25 | ||||
| 26 | ||||
| 27 | ||||
| Motor | ||||
|---|---|---|---|---|
| 28 | Manufacturer | EPE Standard | Insulation class | F |
| 29 | Type | TEFC_3D 65-160/156_380_Three Phase | Phases | 3~ |
| 30 | Specific design | IE3 / 60 Hz / Pole pairs 1 | Frame size | |
| 31 | Rated power kW | 15 | Weight kg | |
| 32 | Number of poles | 2 | Electric voltage V | 380 |
| 33 | Speed rpm | 3500 | Electric current A | 27.1 |
| 34 | Degree of protection | IP 55 | ||
| 35 | ||||
