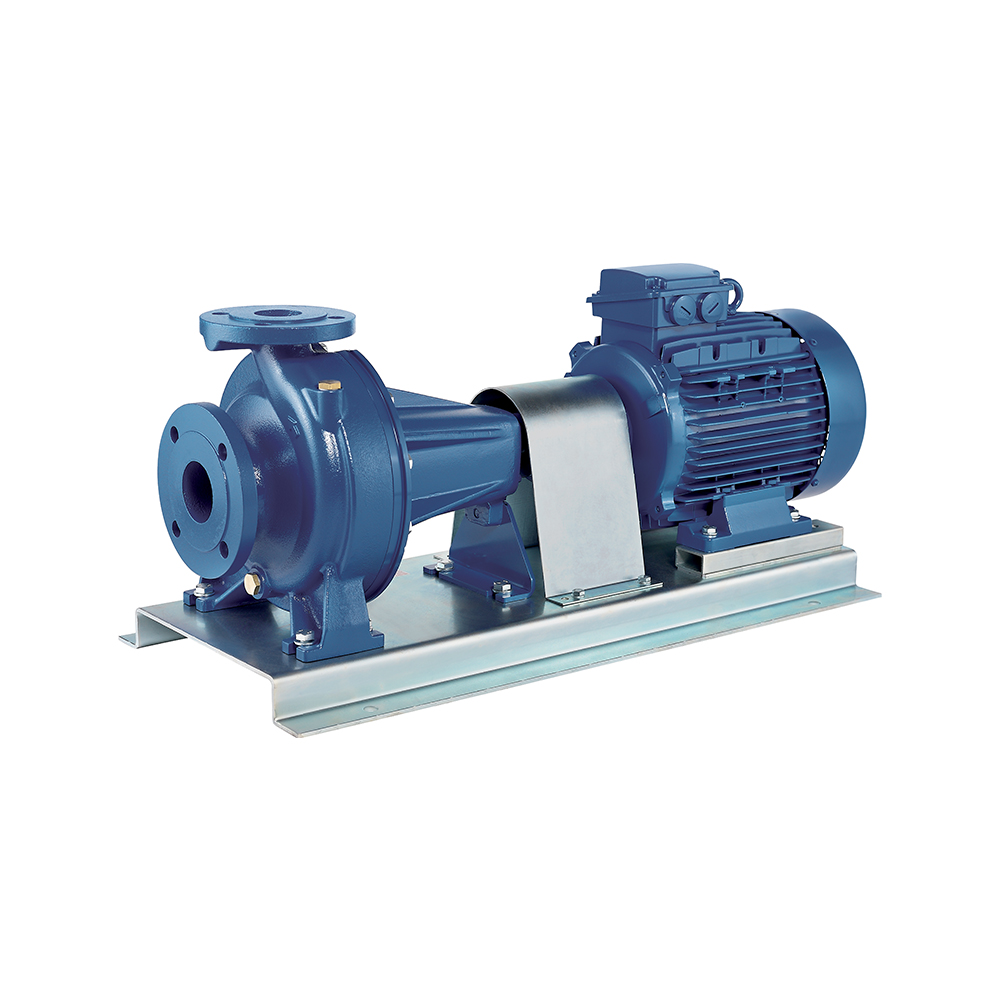

Part Number: 3DP 50-200/15
| 1 | Pump type | CENTRIFUGAL PUMPS | Fluid | Water |
| 2 | Number of pumps / Reserve | 1 / 0 | Liquid temperature °C | 20 |
| 3 | Flow m³/h | Kin. viscosity cSt | 1.005 | |
| 4 | Head m | Vapour pressure kPa | 2.34 | |
| 5 | Geodetic head m | PH value | ||
| 6 | Inlet pressure (pin) kPa | 0 | Density kg/m³ | 998.3 |
| 7 | Available system NPSH | Solids Weight % | 0 | |
| 8 | Ambient temperature °C | 20 |
| Booster Set | |||||
|---|---|---|---|---|---|
| 9 | Pump Name | 3DP 50-200/15 | Frequency Hz | None | 50 |
| 10 | Design | CENTRIFUGAL PUMPS | Installation type | None | STANDARD |
| 11 | Manufacturer | EBARA | ImpellernDiameter | Max. mm | 224 |
| 12 | Speed rpm | 2900 | None | Designed mm | 224 |
| 13 | No. of Stage | 1 | None | Min. mm | 224 |
| 14 | Connection Suction side | EN 1092-2 | Flow | Operating m³/h | |
| 15 | Connection Discharge side | EN 1092-2 | None | Max- m³/h | 72 |
| 16 | Max Working Pressure kPa | 1000 | None | Min- m³/h | 30 |
| 17 | Shut-off head kPa | 695.32 | Head | Operating m | |
| 18 | Total weight kg | See the table of “Dimensions”. | None | – (Qmax.) m | 56.0 |
| 19 | Shaft power kW | None | – (Qmin.) m | 69.6 | |
| 20 | Max. Shaft Power at max. impeller kW | None | 15.11 | ||
| 21 | Required pump NPSH m | Efficiency % | None | ||
| Materials | ||||
|---|---|---|---|---|
| 22 | Impeller | AISI 304 | ||
| 23 | Casing | Cast iron | ||
| 24 | Shaft | AISI 304 (wet extension) | ||
| 25 | ||||
| 26 | ||||
| 27 | ||||
| Motor | ||||
|---|---|---|---|---|
| 28 | Manufacturer | LAFERT | Insulation class | F |
| 29 | Type | TEFC_3DP 50-200/15_400_Three Phase | Phases | 3~ |
| 30 | Specific design | IE3 / 50 Hz / Pole pairs 1 | Frame size | 160 M |
| 31 | Rated power kW | 15 | Weight kg | 88.9 |
| 32 | Number of poles | 2 | Electric voltage V | 400 |
| 33 | Speed rpm | 2900 | Electric current A | 26.7 |
| 34 | Degree of protection | IP 55 | ||
| 35 | ||||
