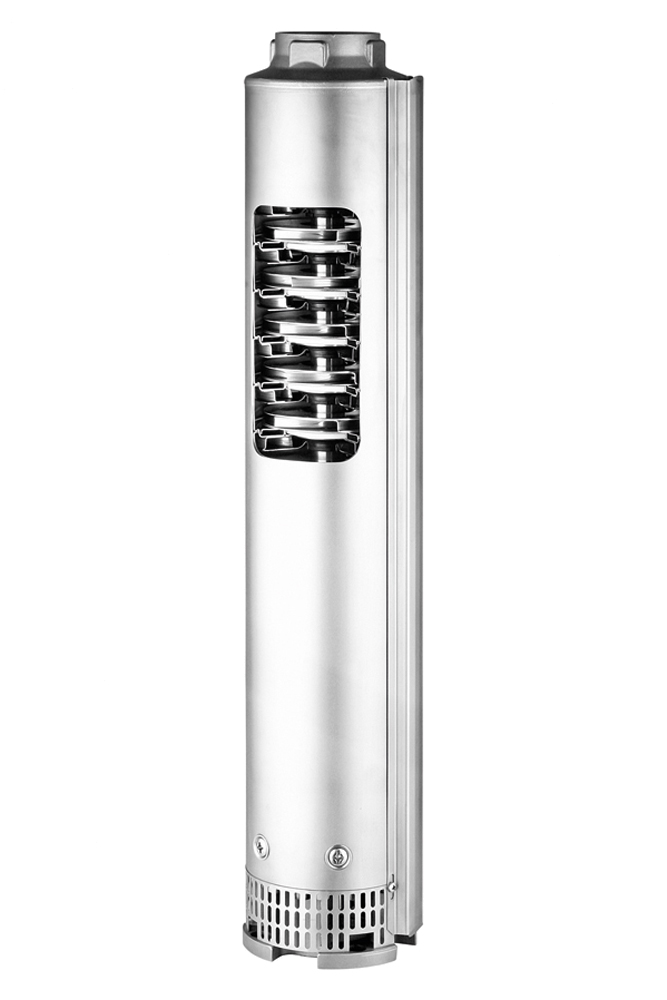

Part Number: WY8BHE 95-19/93 FRK
| 1 | Pump type | SUBMERSIBLE DEEPWELL PUMPS | Fluid | Water |
| 2 | Number of pumps / Reserve | 1 / 0 | Liquid temperature °C | 20 |
| 3 | Flow m³/h | Kin. viscosity mm²/s | 1.005 | |
| 4 | Head m | Vapour pressure bar | 0.0234 | |
| 5 | Geodetic head m | PH value | ||
| 6 | Inlet pressure (pin) bar | 0 | Density kg/m³ | 998.3 |
| 7 | Available system NPSH | Solids Weight % | 0 | |
| 8 | Ambient temperature °C | 20 |
| Booster Set | |||||
|---|---|---|---|---|---|
| 9 | Pump name | WY8BHE 95-19/93 FRK | Frequency Hz | None | 50 |
| 10 | Design | SUBMERSIBLE DEEPWELL PUMPS | Installation type | None | Franklin Motor 8″ |
| 11 | Manufacturer | EBARA | ImpellernDiameter | Max. mm | 0 |
| 12 | Speed rpm | 2900 | None | Designed mm | |
| 13 | No. of Stage | 19 | None | Min. mm | 0 |
| 14 | Connection Suction side | Flow | Operating m³/h | ||
| 15 | Connection Discharge side | Rp 5″ | None | Max- m³/h | 120 |
| 16 | Max Working Pressure bar | 70 | None | Min- m³/h | 30 |
| 17 | Shut-off head bar | 41.17 | Head | Operating m | |
| 18 | Total weight kg | See the table of “Dimensions”. | None | – (Qmax.) m | 171.0 |
| 19 | Shaft power kW | None | – (Qmin.) m | 395.7 | |
| 20 | Max. fluid temperature °C | 40 | Max. Shaft Power at max. impeller kW | None | 80.18 |
| 21 | Required pump NPSH m | Efficiency % | None | ||
| Materials | ||||
|---|---|---|---|---|
| 22 | Impeller | EN 1.4401 (AISI 316) | ||
| 23 | Discharge casing | EN 1.4301 (AISI 304) | ||
| 24 | Shaft | EN 1.4301 (AISI 329) | ||
| 25 | Diffuser | EN 1.4301 (AISI 304) | ||
| 26 | ||||
| 27 | ||||
| Motor | ||||
|---|---|---|---|---|
| 28 | Manufacturer | FRANKLIN | Insulation class | F |
| 29 | Type | 8″ 8BHE 95-19/93_380_Three Phase | Phases | 3~ |
| 30 | Specific design | Submersible water filled type / 50 Hz / Pole pairs 1 | Frame size | 8″ |
| 31 | Rated power kW | 93 | Weight kg | 318 |
| 32 | Number of poles | 2 | Electric voltage V | 380 |
| 33 | Speed rpm | 2920 | Electric current A | 194 |
| 34 | Degree of protection | IP 68 | ||
| 35 | ||||
