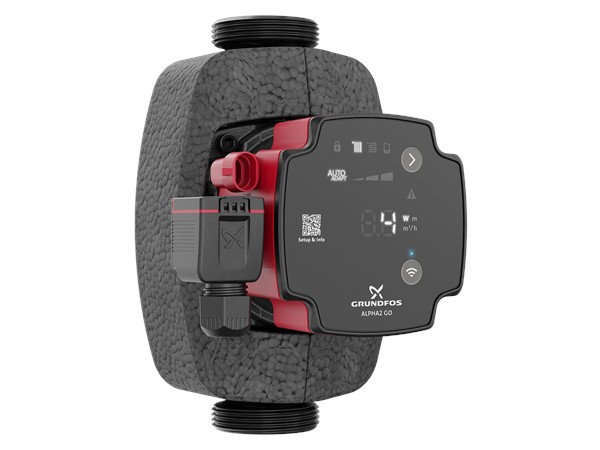

| Product name | ALPHA2 GO 25-75 180 |
| Product No | 93074276 |
| EAN number | 5715467405149 |
| Rated flow | 2.52 m³/h |
| Rated head | 5.52 m |
| Maximum head | 75 dm |
| Pump head orientation | 9H |
| Approvals | CE,VDE |
| Model | A |
| Pump housing | Cast iron |
| Impeller | Composite |
| Range of ambient temperature | 0 .. 55 °C |
| Maximum operating pressure | 10 bar |
| Pipe connection standard | ISO 228-1 |
| Type of connection | G |
| Size of connection | 1 1/2 inch |
| Pressure rating for connection | PN 10 |
| Port-to-port length | 180 mm |
| Pumped liquid | Water |
| Liquid temperature range | -10 .. 110 °C |
| Selected liquid temperature | 20 °C |
| Density | 998.2 kg/m³ |
| P1 min. | 3 W |
| Max. P1 | 75 W |
| Mains frequency | 50 / 60 Hz |
| Rated voltage | 1 x 220-240 V |
| Minimum current consumption | 0.04 A |
| Maximum current consumption | 0.68 A |
| Enclosure class (IEC 34-5) | IP44 |
| Insulation class (IEC 85) | F |
| Thermal protection | Electronic |
| Frequency converter | Built-in |
| Energy (EEI) | 0.19 |
| Net weight | 1.96 kg |
| Gross weight | 2.14 kg |
| Shipping volume | 0.004 m³ |
| Danish VVS No. | 380475275 |
| Swedish RSK No. | 5746855 |
| Finnish LVI No. | 4616567 |
| Norwegian NRF no. | 1392942 |
ALPHA2 GO 25-75 180
