| Product name | ALPHA2 15-80 130 |
| Product No | 99411116 |
| EAN number | 5713828674524 |
| Rated flow | 2.14 m³/h |
| Rated head | 4.36 m |
| Maximum head | 80 dm |
| Pump head orientation | 6H |
| TF class | 110 |
| Approvals | VDE,CE,EAC,SEPRO |
| Model | E |
| Pump housing | Cast iron |
| Impeller | Composite |
| Range of ambient temperature | 0 .. 40 °C |
| Maximum operating pressure | 10 bar |
| Type of connection | G |
| Size of connection | 1 inch |
| Pressure rating for connection | PN 10 |
| Port-to-port length | 130 mm |
| Pumped liquid | Water |
| Liquid temperature range | 2 .. 110 °C |
| Selected liquid temperature | 60 °C |
| Density | 983.2 kg/m³ |
| Minimum power input – P1 | 3 W |
| Power input P1 | 50 W |
| Mains frequency | 50 / 60 Hz |
| Rated voltage | 1 x 230 V |
| Maximum current consumption | 0.04 .. 0.44 A |
| Enclosure class (IEC 34-5) | X4D |
| Insulation class (IEC 85) | F |
| Thermal protec | ELEC |
| Aut. night | automatic reduced night-time duty included |
| Energy (EEI) | 0.18 |
| Net weight | 1.74 kg |
| Gross weight | 1.89 kg |
| Shipping volume | 0.004 m³ |
| Danish VVS No. | 380473080 |
| Swedish RSK No. | 5758785 |
| Norwegian NRF no. | 9043143 |

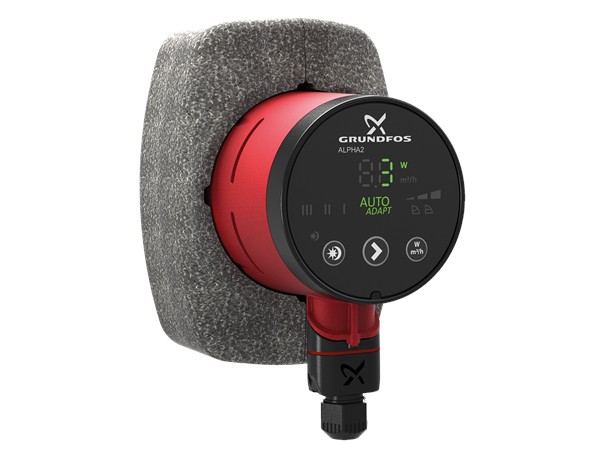

ALPHA2 15-80 130
