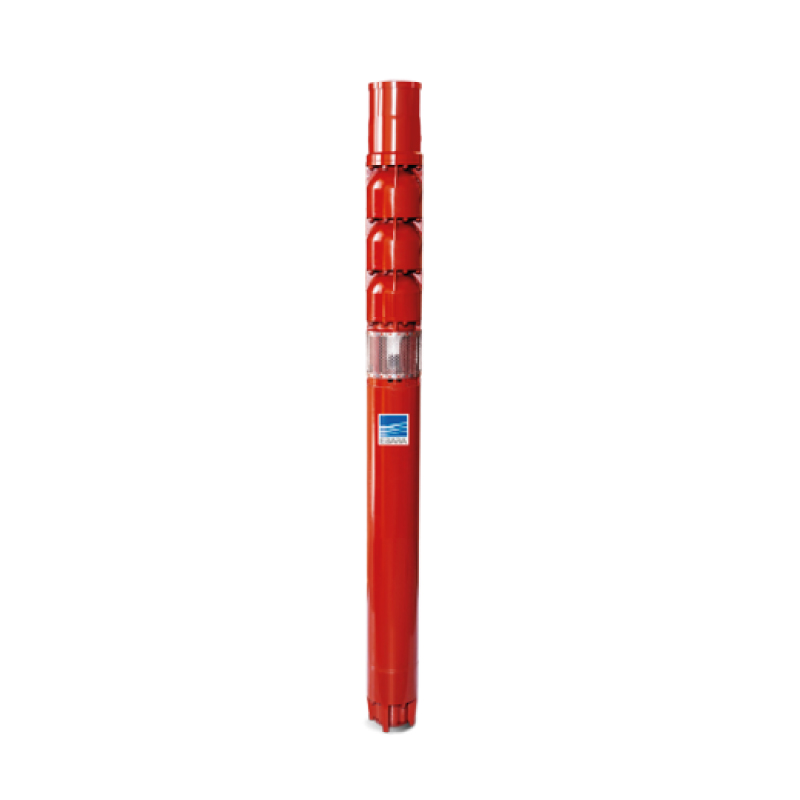

Part Number: BHSE 10260-3 5/67.1 Mi8S
| 1 | Pump type | SUBMERSIBLE MULTISTAGE PUMPS | Fluid | Water |
| 2 | Number of pumps / Reserve | 1 / 0 | Liquid temperature °C | 20 |
| 3 | Flow m³/h | Kin. viscosity mm²/s | 1.005 | |
| 4 | Head m | Vapour pressure bar | 0.0234 | |
| 5 | Geodetic head m | PH value | ||
| 6 | Inlet pressure (pin) bar | 0 | Density kg/m³ | 998.3 |
| 7 | Available system NPSH | Solids Weight % | 0 | |
| 8 | Ambient temperature °C | 20 |
| Booster Set | |||||
|---|---|---|---|---|---|
| 9 | Pump Name | BHSE 10260-3 5/67.1 Mi8S | Frequency Hz | None | 50 |
| 10 | Design | SUBMERSIBLE MULTISTAGE PUMPS | Installation type | None | STANDARD |
| 11 | Manufacturer | EBARA | ImpellernDiameter | Max. mm | 163 |
| 12 | Speed rpm | 2900 | None | Designed mm | 163 |
| 13 | No. of Stage | 3 | None | Min. mm | 163 |
| 14 | Connection Suction side | Flow | Operating m³/h | ||
| 15 | Connection Discharge side | None | Max- m³/h | 280 | |
| 16 | Max Working Pressure bar | None | Min- m³/h | 100 | |
| 17 | Shut-off head bar | 10.43 | Head | Operating m | |
| 18 | Total weight kg | See the table of “Dimensions”. | None | – (Qmax.) m | 64.7 |
| 19 | Shaft power kW | None | – (Qmin.) m | 100.0 | |
| 20 | Max. Shaft Power at max. impeller kW | None | 63.87 | ||
| 21 | Required pump NPSH m | Efficiency % | None | ||
| Materials | ||||
|---|---|---|---|---|
| 22 | Casing | Casting iron | Washers | Stainless steel |
| 23 | Impeller | Stainless steel – precision casting | Paint (Motor) | Synthetic alkyd |
| 24 | Shaft | Stainless steel | ||
| 25 | Stainet | Stainless steel | ||
| 26 | Screw | Stainless steel | ||
| 27 | Nuts | Stainless steel | ||
| Motor | ||||
|---|---|---|---|---|
| 28 | Manufacturer | EBAS | Insulation class | Y |
| 29 | Type | Mi8S 90HP 220V TRIF. 50Hz | Phases | 3~ |
| 30 | Specific design | Submersible water filled type / 50 Hz / Pole pairs 1 | Frame size | 8 |
| 31 | Rated power kW | 67.14 | Weight kg | 223 |
| 32 | Number of poles | 2 | Electric voltage V | 220 |
| 33 | Speed rpm | 2920 | Electric current A | 243 |
| 34 | Degree of protection | IP 68 | ||
