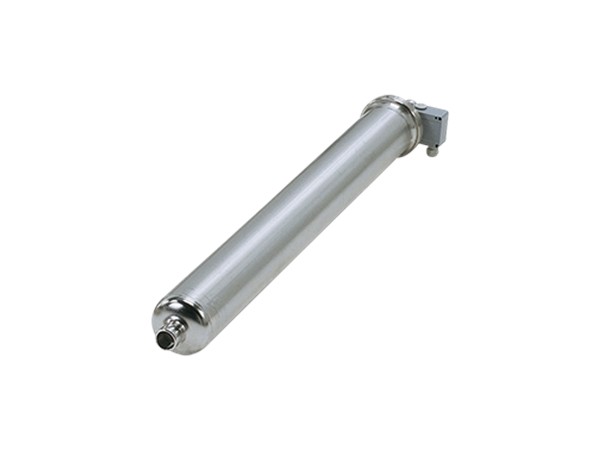

| Product name | BM 3A-25N NBR |
| Product No | 10751925 |
| EAN number | 5700392819932 |
| Rated flow | 3 m³/h |
| Rated head | 107.8 m |
| Stages | 25 |
| Curve tolerance | ISO9906:2012 3B |
| Model | D |
| Pump | Stainless steel |
| Impeller | Stainless steel |
| Motor | Stainless steel |
| Code for rubber | NBR |
| Sleeve | Stainless steel |
| Maximum operating pressure | 82.7 bar |
| Maximum permissible inlet pressure | 50 bar |
| Maximum outlet pressure | 82 bar |
| Pipe connection standard | PJE |
| Pipe connection | B |
| Pumped liquid | Water |
| Maximum liquid temperature | 40 °C |
| Selected liquid temperature | 20 °C |
| Density | 998.2 kg/m³ |
| Rated power – P2 | 1.5 kW |
| Mains frequency | 50 Hz |
| Rated voltage | 3 x 380-400-415 V |
| Rated current | 4-4-4.1 A |
| Starting current | 400-430-440 % |
| Cos phi – power factor | 0.83-0.78-0.74 |
| Rated speed | 2840-2860-2870 rpm |
| Method of start | Direct-on-line (DOL) |
| Enclosure class (IEC 34-5) | IP66 |
| Thermal protection | External |
| Built-in temp. transmitter | Yes |
| Motor No | 7C193706 |
| Minimum efficiency index, MEI ≥ | 0.70 |
| Net weight | 40 kg |
| Gross weight | 73.1 kg |
| Shipping volume | 0.12 m³ |
BM 3A-25N NBR
