| Product name | BM 3A-33NE E/FKM |
| Product No | 10741933 |
| EAN number | 5700392819796 |
| Rated flow | 3 m³/h |
| Rated head | 144.5 m |
| Stages | 33 |
| Curve tolerance | ISO9906:2012 3B |
| Model | D |
| Pump | Stainless steel |
| Impeller | Stainless steel |
| Motor | Stainless steel |
| Code for rubber | E/FKM |
| Sleeve | Stainless steel |
| Maximum operating pressure | 82.7 bar |
| Maximum permissible inlet pressure | 50 bar |
| Maximum outlet pressure | 82 bar |
| Pipe connection standard | PJE |
| Pipe connection | S |
| Pumped liquid | Water |
| Maximum liquid temperature | 40 °C |
| Selected liquid temperature | 20 °C |
| Density | 998.2 kg/m³ |
| Rated power – P2 | 2.2 kW |
| Mains frequency | 50 Hz |
| Rated voltage | 3 x 380-400-415 V |
| Rated current | 6-6-6.3 A |
| Starting current | 420-440-450 % |
| Cos phi – power factor | 0.8-0.74-0.69 |
| Rated speed | 2850-2860-2880 rpm |
| Method of start | Direct-on-line (DOL) |
| Enclosure class (IEC 34-5) | IP66 |
| Thermal protection | External |
| Built-in temp. transmitter | Yes |
| Motor No | 7C193907 |
| Minimum efficiency index, MEI ≥ | 0.70 |
| Net weight | 48 kg |
| Gross weight | 83.8 kg |
| Shipping volume | 0.126 m³ |

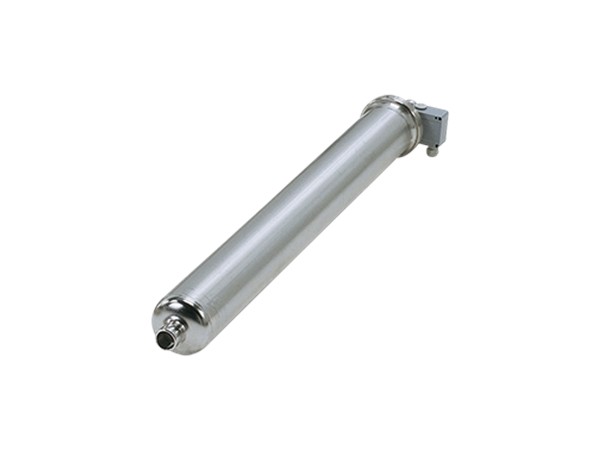

BM 3A-33NE E/FKM
