| Product name | BM 5A-60 NBR |
| Product No | 5781960 |
| EAN number | 5710629811356 |
| Rated flow | 5 m³/h |
| Rated head | 238.3 m |
| Stages | 60 |
| Curve tolerance | ISO9906:2012 3B |
| Model | D |
| Pump | Stainless steel |
| Impeller | Stainless steel |
| Motor | Stainless steel |
| Code for rubber | NBR |
| Sleeve | Stainless steel |
| Maximum operating pressure | 82.7 bar |
| Maximum permissible inlet pressure | 50 bar |
| Maximum outlet pressure | 82 bar |
| Pipe connection standard | PJE |
| Pipe connection | S |
| Pumped liquid | Water |
| Maximum liquid temperature | 40 °C |
| Selected liquid temperature | 20 °C |
| Density | 998.2 kg/m³ |
| Rated power – P2 | 5.5 kW |
| Mains frequency | 50 Hz |
| Rated voltage | 3 x 380-400-415 V |
| Rated current | 13-13-13.4 A |
| Starting current | 470-500-510 % |
| Cos phi – power factor | 0.85-0.81-0.76 |
| Rated speed | 2840-2860-2880 rpm |
| Method of start | Direct-on-line (DOL) |
| Enclosure class (IEC 34-5) | IP66 |
| Thermal protection | External |
| Built-in temp. transmitter | Yes |
| Motor No | 7C193511 |
| Minimum efficiency index, MEI ≥ | 0.50 |
| Net weight | 70 kg |
| Gross weight | 121 kg |
| Shipping volume | 0.175 m³ |

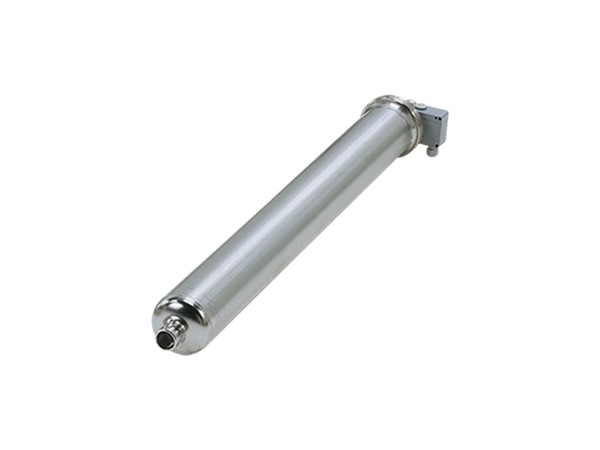

BM 5A-60 NBR
