| Product name | BM 125-4-AN NBR |
| Product No | 17CR19A4 |
| EAN number | 5700391972256 |
| Rated flow | 125 m³/h |
| Rated head | 75.2 m |
| Stages | 4 |
| Curve tolerance | ISO9906:2012 3B |
| Model | D |
| Pump | Stainless steel |
| Impeller | Stainless steel |
| Motor | Stainless steel |
| Code for rubber | NBR |
| Sleeve | Stainless steel |
| Maximum operating pressure | 82.7 bar |
| Maximum permissible inlet pressure | 25 bar |
| Maximum outlet pressure | 82 bar |
| Pipe connection standard | PJE |
| Pipe connection | 168 mm |
| Pumped liquid | Water |
| Maximum liquid temperature | 45 °C |
| Selected liquid temperature | 20 °C |
| Density | 998.2 kg/m³ |
| Rated power – P2 | 37 kW |
| Mains frequency | 50 Hz |
| Rated voltage | 3 x 380-400-415 V |
| Rated current | 81.5-78.5-77.0 A |
| Starting current | 530-570-590 % |
| Cos phi – power factor | 0.87-0.85-0.83 |
| Start. method | direct-on-line |
| Enclosure class (IEC 34-5) | IP66 |
| Thermal protec | external |
| Built-in temp. transmitter | no |
| Motor No | 96530085 |
| Minimum efficiency index, MEI ≥ | -.– |
| Net weight | 289 kg |
| Gross weight | 378 kg |
| Shipping volume | 1.04 m³ |

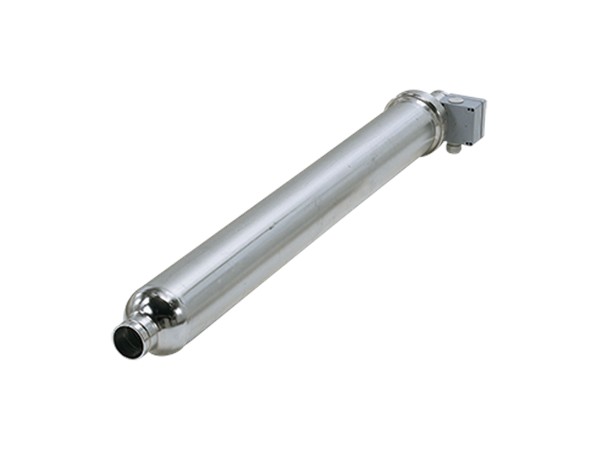

BM 125-4-AN NBR
