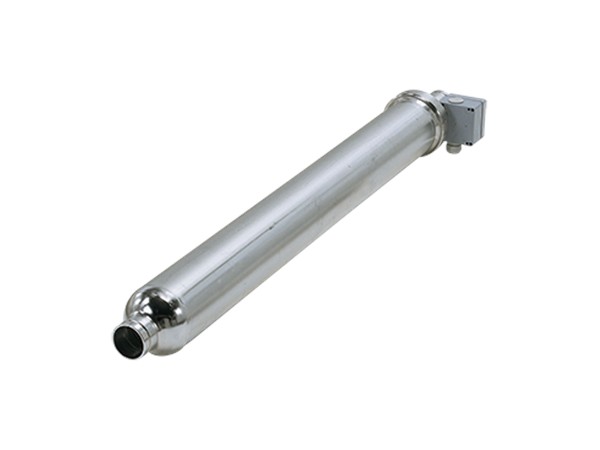

| Product name | BM 77-14R NBR |
| Product No | 16CU1914 |
| EAN number | 5700317716247 |
| Rated flow | 77 m³/h |
| Rated head | 178.4 m |
| Stages | 14 |
| Curve tolerance | ISO9906:2012 3B |
| Model | D |
| Pump | Stainless steel |
| Impeller | Stainless steel |
| Motor | Stainless steel |
| Code for rubber | NBR |
| Sleeve | Stainless steel |
| Maximum operating pressure | 82.7 bar |
| Maximum permissible inlet pressure | 60 bar |
| Maximum outlet pressure | 82 bar |
| Pipe connection standard | PJE |
| Pipe connection | 139 mm |
| Pumped liquid | Water |
| Maximum liquid temperature | 40 °C |
| Selected liquid temperature | 20 °C |
| Density | 998.2 kg/m³ |
| Rated power – P2 | 55 kW |
| Mains frequency | 50 Hz |
| Rated voltage | 3 x 380-400-415 V |
| Rated current | 116-114-112 A |
| Starting current | 540-590-630 % |
| Cos phi – power factor | 0.88-0.85-0.83 |
| Start. method | direct-on-line |
| Enclosure class (IEC 34-5) | IP66 |
| Built-in temp. transmitter | no |
| Motor No | 96539767 |
| Minimum efficiency index, MEI ≥ | -.– |
| Net weight | 373 kg |
| Gross weight | 502 kg |
| Shipping volume | 1.54 m³ |
BM 77-14R NBR
