| Product name | BM hp 60-3-R NBR |
| Product No | 95908984 |
| EAN number | 5700838247947 |
| Rated flow | 60 m³/h |
| Rated head | 22 m |
| Stages | 3 |
| Curve tolerance | ISO9906:2012 3B |
| Model | E |
| Pump | Stainless steel |
| Impeller | Stainless steel |
| Motor | Stainless steel |
| Code for rubber | NBR |
| Sleeve | Stainless steel |
| Maximum operating pressure | 82.7 bar |
| Maximum permissible inlet pressure | 82 bar |
| Maximum outlet pressure | 82 bar |
| Pipe connection standard | PJE |
| Pipe connection | 89 mm |
| Pumped liquid | Water |
| Maximum liquid temperature | 40 °C |
| Selected liquid temperature | 20 °C |
| Density | 998.2 kg/m³ |
| Rated power – P2 | 5.5 kW |
| Mains frequency | 50 Hz |
| Rated voltage | 3 x 380-415 V |
| Service factor | 1.15 |
| Rated current | 13.6 A |
| Rated speed | 2850-2870-2880 rpm |
| Method of start | DOL |
| Enclosure class (IEC 34-5) | IP66 |
| Minimum efficiency index, MEI ≥ | 0.40 |
| Net weight | 80.5 kg |
| Gross weight | 122 kg |

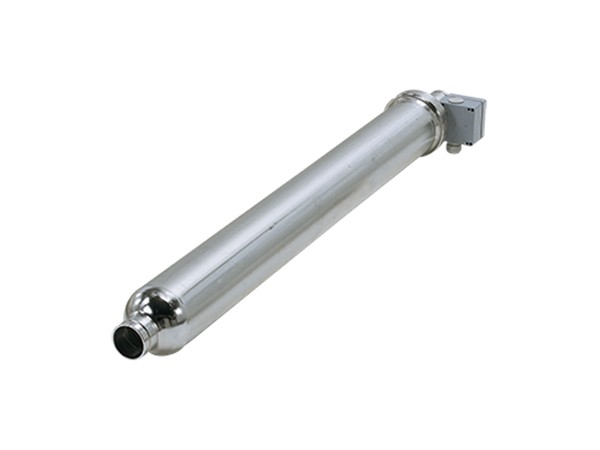

BM hp 60-3-R NBR
