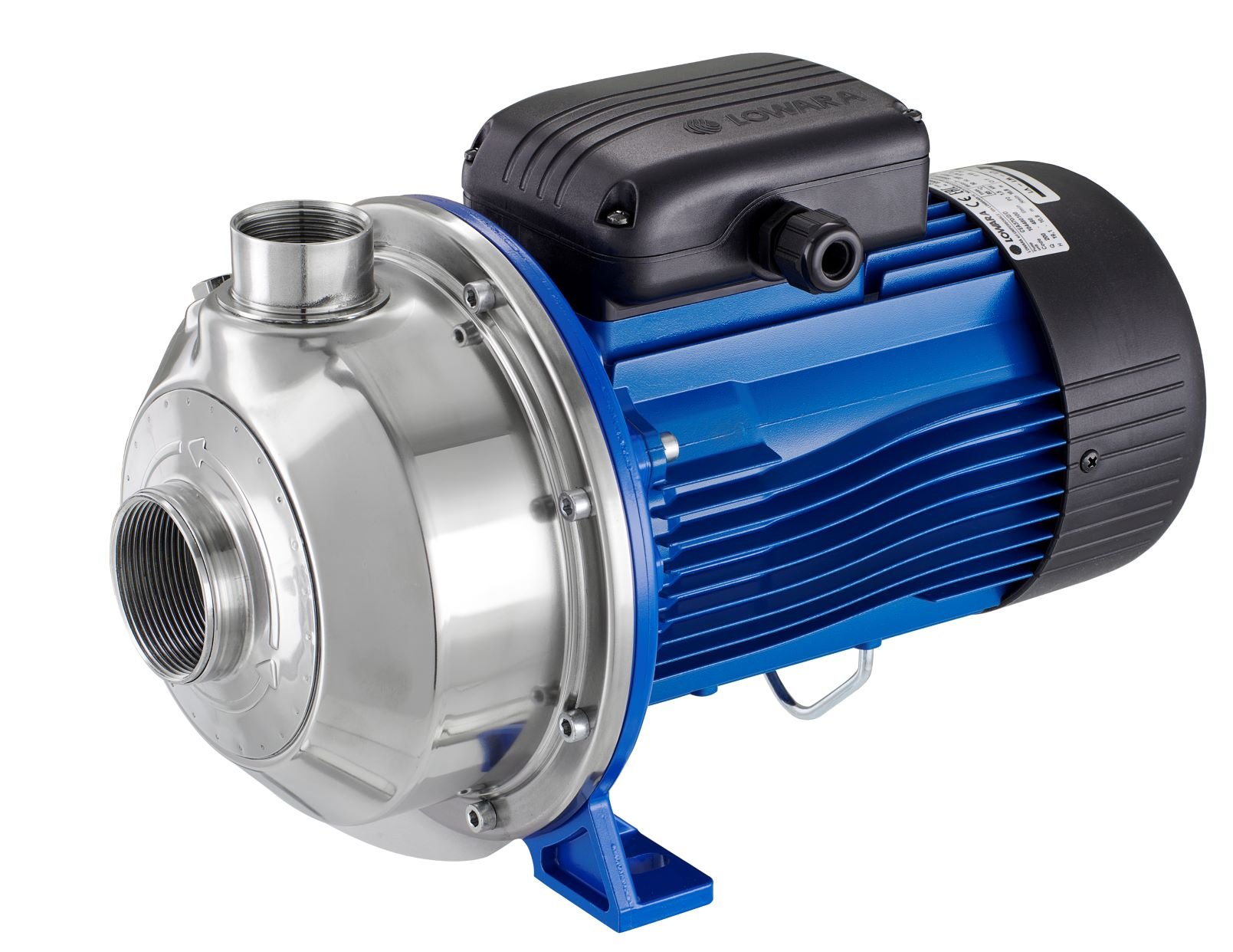

Lowara CEA 120/3 Single-Impeller Centrifugal Pump – Technical Specifications
Product Overview
The Lowara CEA 120/3 is a single-impeller centrifugal electric pump designed for clean water transfer in residential, commercial, and industrial systems. Built with corrosion-resistant AISI 304 stainless steel, this monobloc pump meets ISO 9906:2012 – Grade 3B standards for hydraulic performance and reliability.
Hydraulic Performance
-
Maximum Head: 22.3 meters
-
Maximum Flow Rate: 9.0 m³/h
-
Hydraulic Duty Point Flow: 0 m³/h
-
Hydraulic Duty Point Head: 0 meters
-
Maximum Shaft Power: 0.577 kW
Motor Specifications
-
Rated Motor Power (P2): 0.55 kW
-
Motor Speed: 2835 rpm
-
Rated Voltage: 230 V
-
Rated Current: 2.49 A
-
Frequency / Phase: 50 Hz / 3-phase
-
Insulation Class: F
-
Protection Class: IP55
-
Permitted Voltage Tolerance: ±10%
-
Design Speed: 2900 rpm
Material Specifications
-
Pump Body: Stainless Steel AISI 304
-
Impeller: Stainless Steel AISI 304
-
Diffuser: Stainless Steel AISI 304
-
Seal Housing: Stainless Steel AISI 304
Mechanical Seal Composition
-
Fixed Assembly: Carbon Graphite
-
Rotating Assembly: Ceramic
-
Elastomers: NBR
-
Springs & Other Components: AISI 316
Operating Conditions
-
Operating Medium: 100% Clean Water
-
Reference Fluid Conditions:
-
Temperature: 4°C
-
Density: 1000 kg/m³
-
Kinematic Viscosity: 1.57 mm²/s
-
-
Installation Type: Monobloc
Pump Dimensions (mm)
-
A: 51
-
D: 140
-
H: 222
-
H1: 111
-
H2: 232
-
L: 325
-
L1: 76
-
L2: 117
-
W: 65
-
Inlet (DNA): Rp 1¼
-
Outlet (DNM): Rp 1
General Information
-
Model: CEA 120/3
-
Weight: 10.3 kg
-
Compliance: ISO 9906:2012 – Grade 3B
