Lowara CEA 210/2 Single-Impeller Centrifugal Pump – Technical Specifications
Product Overview

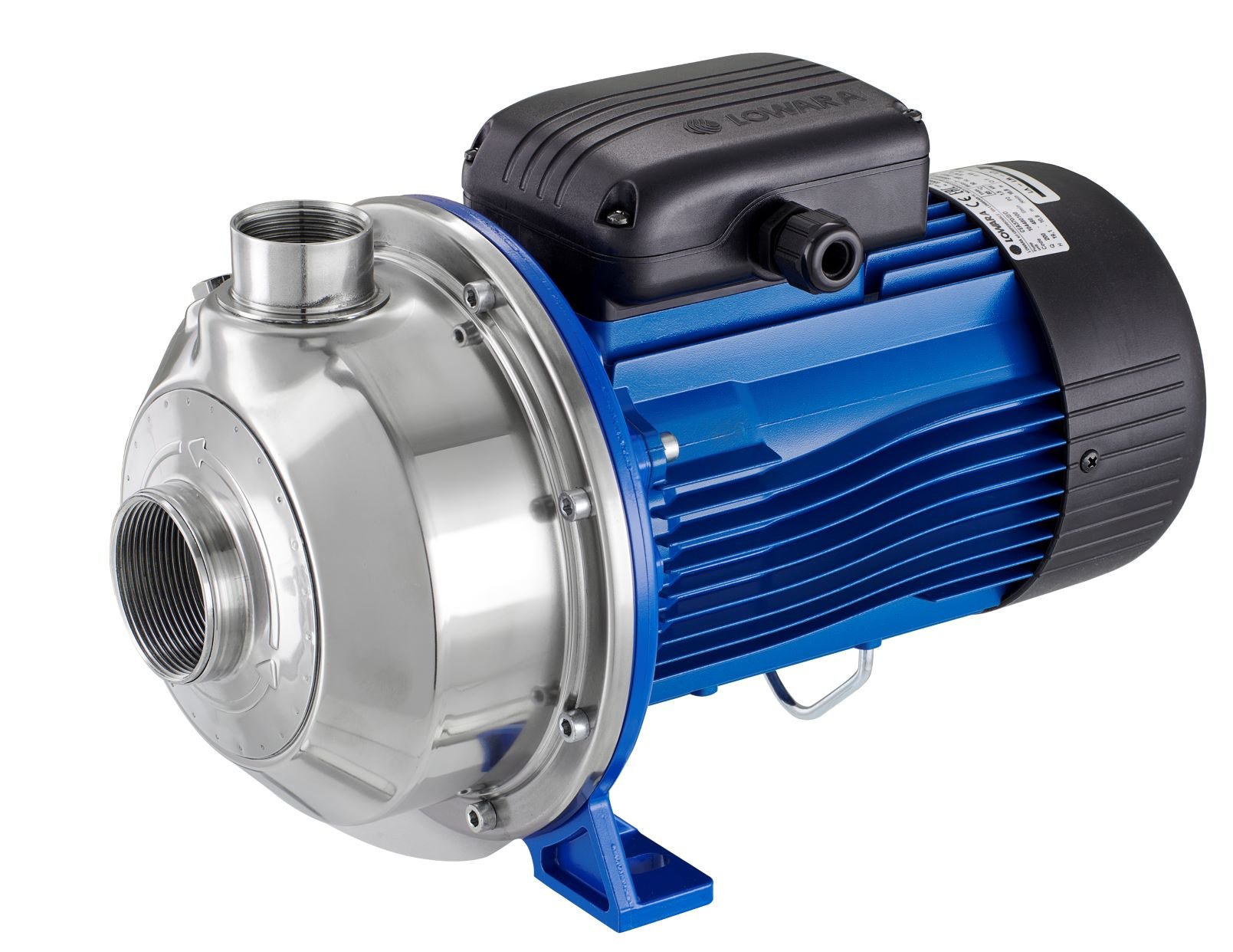

The Lowara CEA 210/2 is a single-impeller centrifugal electric pump designed for efficient clean water transfer in residential, commercial, and light industrial systems. Constructed from AISI 304 stainless steel, this monobloc pump is corrosion-resistant and meets ISO 9906:2012 – Grade 3B performance standards.
Hydraulic Performance
-
Maximum Head: 17.9 meters (at Q = 0)
-
Maximum Flow Rate: 14 m³/h
-
Hydraulic Duty Point Flow: 0 m³/h
-
Hydraulic Duty Point Head: 0 m
-
Maximum Shaft Power: 0.857 kW
Motor Specifications
-
Rated Power (P2): 0.75 kW
-
Nominal Speed: 2875 rpm
-
Design Speed: 2900 rpm
-
Rated Voltage: 230 V
-
Rated Current: 2.94 A
-
Frequency / Phase: 50 Hz / 3-phase
-
Insulation Class: F
-
Protection Class: IP55
-
Permitted Voltage Tolerance: ±10%
Material Construction
-
Pump Body: Stainless Steel AISI 304
-
Impeller: Stainless Steel AISI 304
-
Diffuser: Stainless Steel AISI 304
-
Seal Housing: Stainless Steel AISI 304
Mechanical Seal Details
-
Fixed Assembly: Carbon Graphite
-
Rotating Assembly: Ceramic
-
Elastomers: NBR
-
Springs: AISI 316
-
Other Components: AISI 316
Operating Conditions
-
Operating Medium: 100% Pure Water
-
Reference Conditions:
-
Temperature: 4°C
-
Density: 1000 kg/m³
-
Kinematic Viscosity: 1.57 mm²/s
-
-
Installation Type: Monobloc
Pump Dimensions (mm)
-
A: 54
-
D: 156
-
H: 224
-
H1: 113
-
H2: 248
-
L: 385
-
L1: 69
-
L2: 150
-
W: 76
-
Inlet (DNA): Rp 1½
-
Outlet (DNM): Rp 1¼
General Information
-
Model: CEA 210/2
-
Weight: 13.8 kg
-
Compliance: ISO 9906:2012 – Grade 3B
