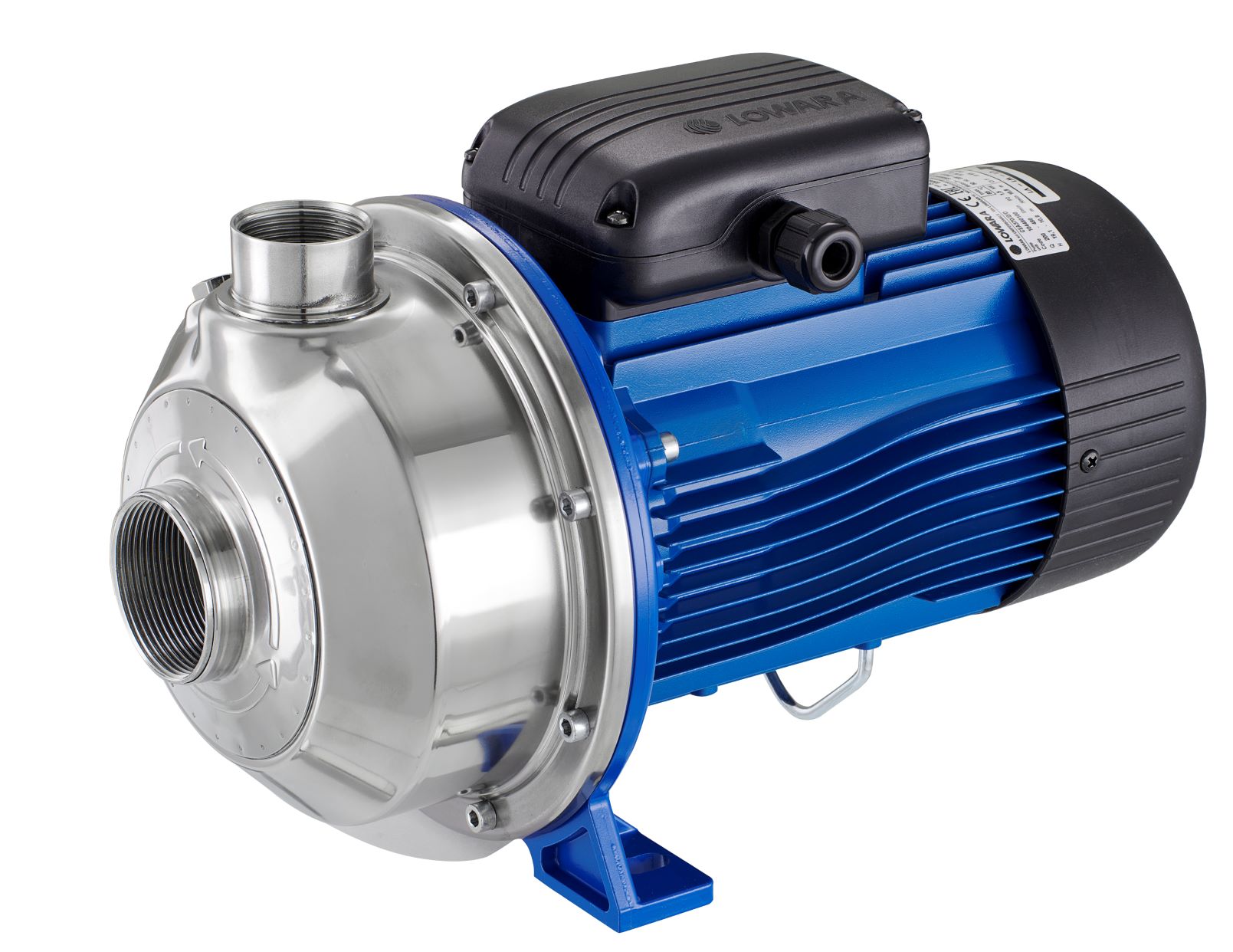

Lowara CEA 210/3 Single-Impeller Centrifugal Pump – Technical Specifications
Product Overview
The Lowara CEA 210/3 is a single-impeller centrifugal electric pump, designed for high-efficiency water handling in residential, commercial, and light industrial settings. Made with AISI 304 stainless steel, it ensures long-term durability and corrosion resistance. The pump is certified according to ISO 9906:2012 – Grade 3B.
Hydraulic Performance
-
Maximum Head: 20.7 m
-
Maximum Flow Rate: 14 m³/h
-
Hydraulic Duty Point Flow: 0 m³/h
-
Hydraulic Duty Point Head: 0 m
-
Maximum Shaft Power: 1.08 kW
Motor Specifications
-
Rated Power (P2): 1.1 kW
-
Nominal Speed: 2870 rpm
-
Design Speed: 2900 rpm
-
Rated Voltage: 230 V
-
Rated Current: 4.14 A
-
Frequency / Phase: 50 Hz / 3-phase
-
Insulation Class: F
-
Protection Class: IP55
-
Voltage Tolerance: ±10%
Material Construction
-
Pump Body: AISI 304 Stainless Steel
-
Impeller: AISI 304 Stainless Steel
-
Diffuser: AISI 304 Stainless Steel
-
Seal Housing: AISI 304 Stainless Steel
Mechanical Seal Details
-
Fixed Assembly: Carbon Graphite
-
Rotating Assembly: Ceramic
-
Elastomers: NBR
-
Springs: AISI 316
-
Other Components: AISI 316
Operating Conditions
-
Working Medium: 100% Clean Water
-
Reference Fluid Properties:
-
Temperature: 4°C
-
Density: 1000 kg/m³
-
Kinematic Viscosity: 1.57 mm²/s
-
-
Installation Type: Monobloc
Pump Dimensions (mm)
-
A: 54
-
D: 156
-
H: 224
-
H1: 113
-
H2: 248
-
L: 385
-
L1: 69
-
L2: 150
-
W: 76
-
Inlet (DNA): Rp 1½
-
Outlet (DNM): Rp 1¼
General Information
-
Model: CEA 210/3
-
Weight: 13.8 kg
-
Standard Compliance: ISO 9906:2012 – Grade 3B
