Lowara CEA 2106/0 Single-Impeller Centrifugal Pump – Technical Specifications
Product Overview

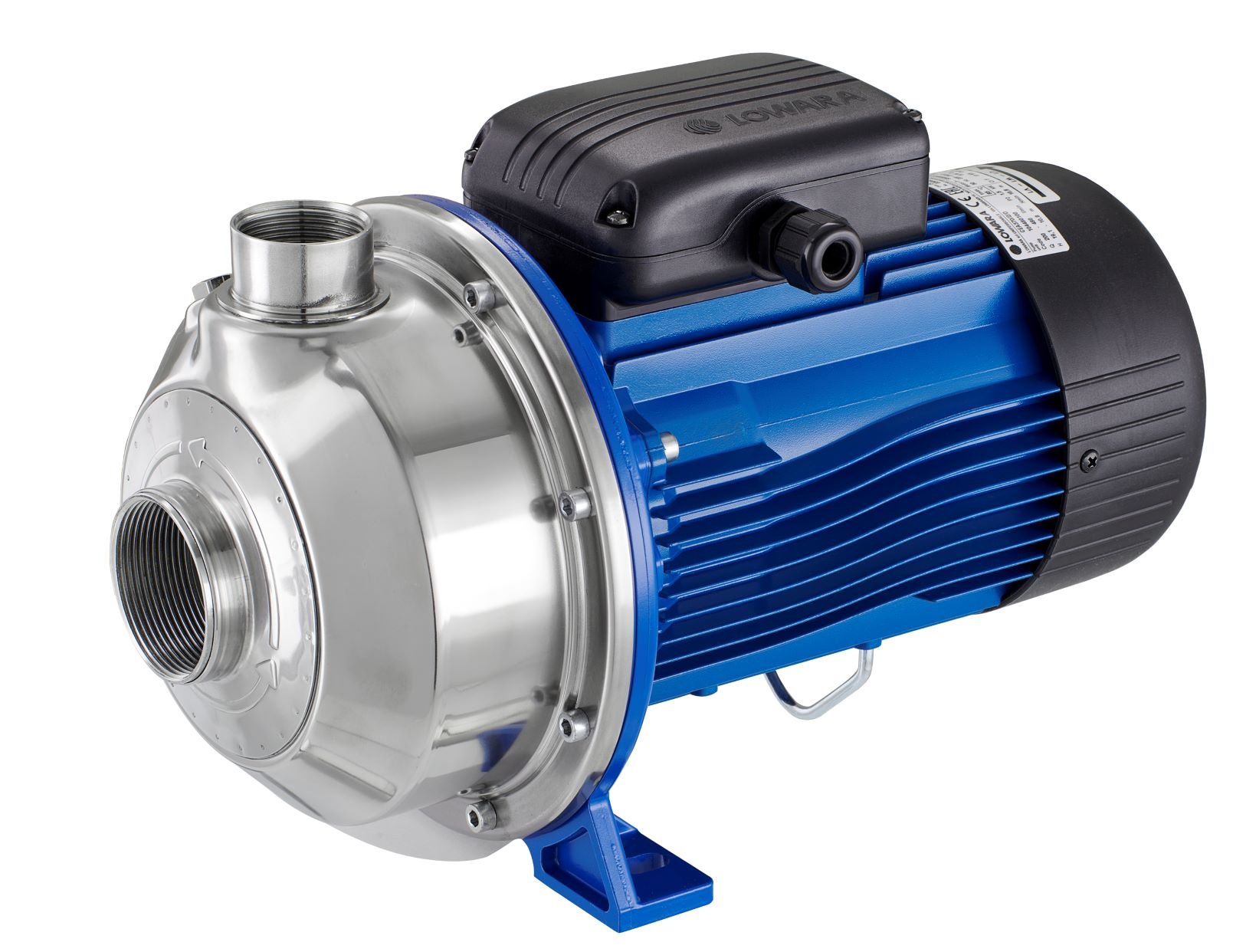

The Lowara CEA 2106/0 is a compact, high-efficiency single-impeller centrifugal electric pump, ideal for clean water transfer in residential, commercial, and industrial systems. Built from AISI 304 stainless steel, it offers excellent corrosion resistance and long-lasting performance. The pump is certified to ISO 9906:2012 – Grade 3B standards.
Hydraulic Performance
-
Maximum Head (H @ Q=0): 55.8 ft
-
Maximum Flow Rate: 80 US g.p.m.
-
Hydraulic Duty Point Flow: 0 US g.p.m.
-
Hydraulic Duty Point Head: 0 ft
-
Maximum Shaft Power: 0.983 hp
Motor Specifications
-
Rated Power (P2): 1.0058 hp
-
Nominal Speed: 3490 rpm
-
Design Speed: 3500 rpm
-
Rated Voltage: 220 V
-
Rated Current: 3.03 A
-
Frequency / Phase: 60 Hz / 3-phase
-
Protection Class: IP55
-
Insulation Class: F
-
Permitted Voltage Tolerance: ±10%
Material Construction
-
Pump Body: AISI 304 Stainless Steel
-
Impeller: AISI 304 Stainless Steel
-
Diffuser: AISI 304 Stainless Steel
-
Seal Housing: AISI 304 Stainless Steel
Mechanical Seal Components
-
Fixed Assembly: Carbon Graphite
-
Rotating Assembly: Ceramic
-
Elastomers: NBR
-
Springs: AISI 316
-
Other Components: AISI 304
Operating Conditions
-
Operating Medium: 100% Clean Water
-
Reference Fluid Conditions:
-
Temperature: 39.2°F
-
Density: 62.4 lb/ft³
-
Kinematic Viscosity: 1.69E-5 ft²/s
-
-
Installation Type: Monobloc
Pump Dimensions (in inches)
-
A: 21/64
-
D: 5½
-
H: 8¾
-
H1: 4⅜
-
H2: 9½
-
L: 12 13/16
-
L1: 1¼
-
W: 2 9/16
-
Inlet (DNA): Rp 1½
-
Outlet (DNM): Rp 1¼
General Information
-
Model: CEA 2106/0
-
Weight: 25.794 lb
-
Standard Compliance: ISO 9906:2012 – Grade 3B
