Lowara CEA 370/3 Single-Impeller Centrifugal Pump – Technical Specifications
Product Overview

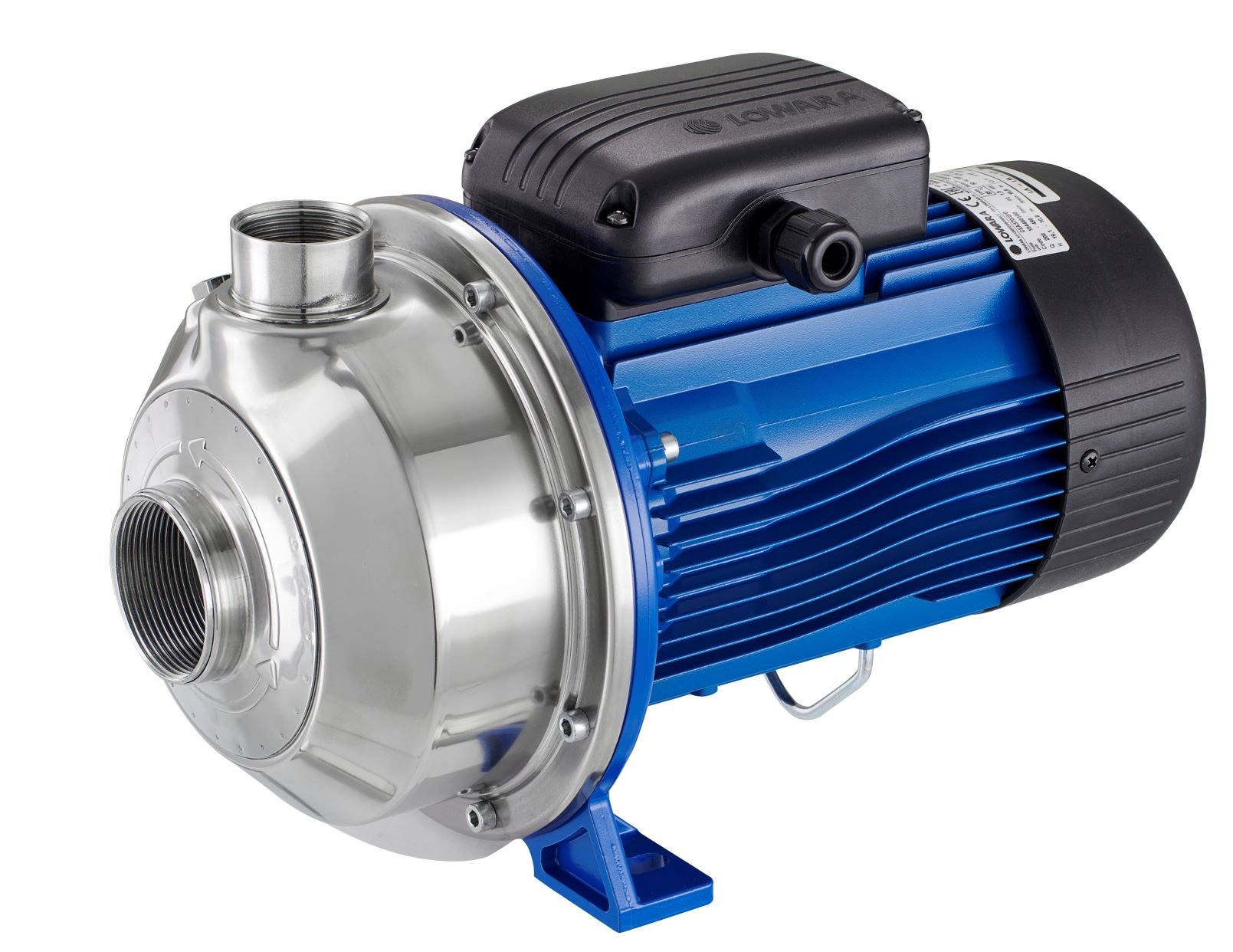

The Lowara CEA 370/3 is a single-impeller centrifugal electric pump engineered for clean water transfer in residential, commercial, and industrial systems. Constructed from AISI 304 stainless steel, it ensures long-term durability and superior corrosion resistance. The pump adheres to ISO 9906:2012 – Grade 3B hydraulic performance standards.
Hydraulic Performance
-
Maximum Head (H @ Q = 0): 24.4 m
-
Maximum Shaft Power: 2.07 kW
-
Hydraulic Duty Point Flow: 0 m³/h
-
Hydraulic Duty Point Head: 0 m
Motor Specifications
-
Rated Power (P2): 2.2 kW
-
Nominal Speed: 2880 rpm
-
Design Speed: 2900 rpm
-
Rated Voltage: 230 V
-
Rated Current: 7.9 A
-
Frequency / Phase: 50 Hz / 3-phase
-
Insulation Class: F
-
Protection Class: IP55
-
Permitted Voltage Tolerance: ±10%
Material Construction
-
Pump Body: AISI 304 Stainless Steel
-
Impeller: AISI 304 Stainless Steel
-
Diffuser: AISI 304 Stainless Steel
-
Seal Housing: AISI 304 Stainless Steel
Mechanical Seal Composition
-
Fixed Assembly: Carbon Graphite
-
Rotating Assembly: Ceramic
-
Elastomers: NBR
-
Springs: AISI 316
-
Other Components: AISI 316
Operating Conditions
-
Medium: 100% Clean Water
-
Reference Conditions:
-
Temperature: 4°C
-
Density: 1000 kg/m³
-
Kinematic Viscosity: 1.57 mm²/s
-
-
Installation Type: Monobloc
Pump Dimensions (mm)
-
A: 54
-
D: 174
-
H: 224
-
H1: 113
-
H2: 245
-
L: 429
-
L1: 172
-
L2: 197
-
W: 76
-
Inlet (DNA): Rp 2
-
Outlet (DNM): Rp 1¼
General Information
-
Model: CEA 370/3
-
Weight: On demand
-
Standard Compliance: ISO 9906:2012 – Grade 3B
