Lowara CEA 706/4 Single-Impeller Centrifugal Pump – Technical Specifications
Product Overview

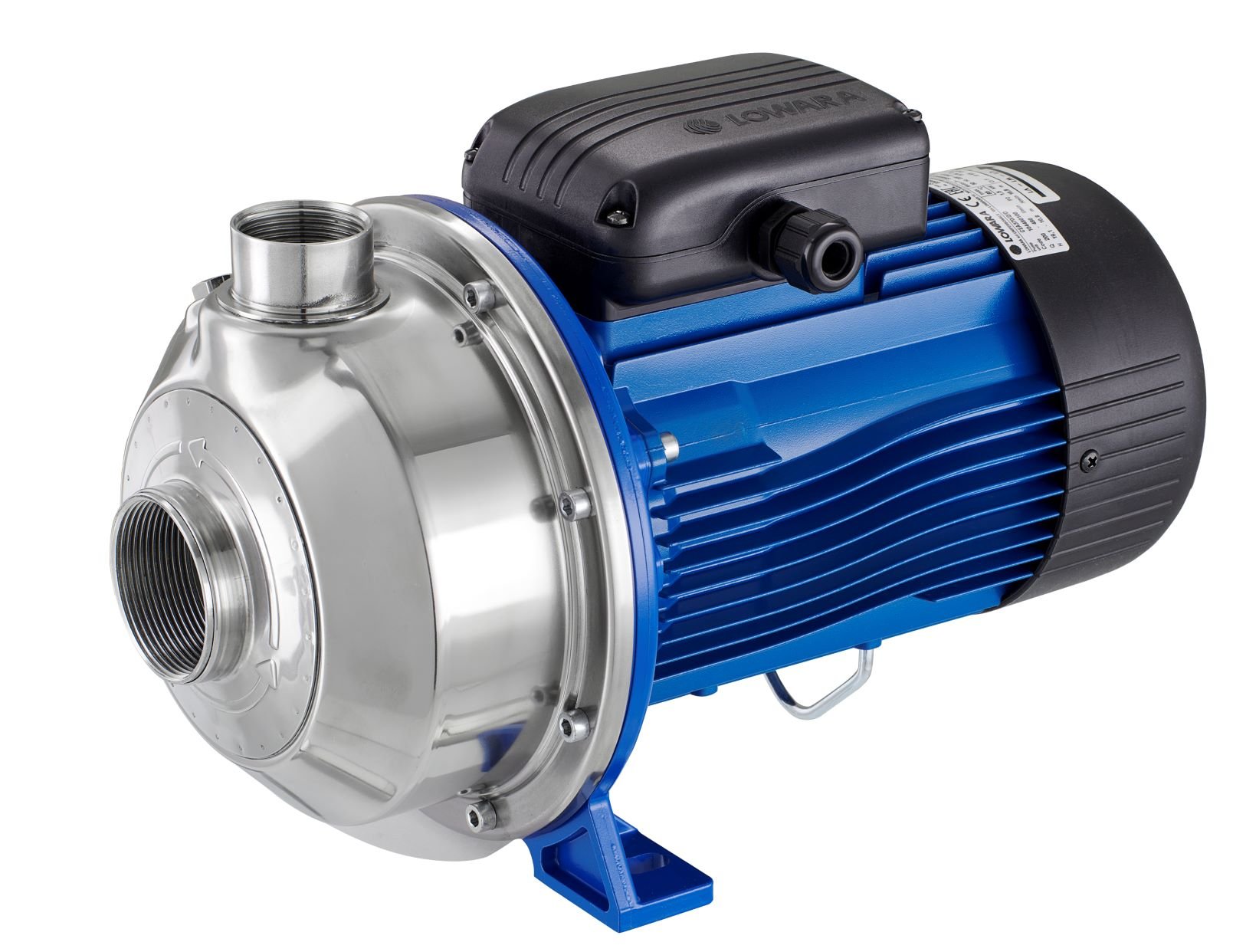

The Lowara CEA 706/4 is a single-impeller centrifugal electric pump designed for clean water applications across residential, commercial, and industrial sectors. Made from durable AISI 304 stainless steel, this model ensures high corrosion resistance and long operational life. Performance certified to ISO 9906:2012 – Grade 3B.
Hydraulic Performance
-
Maximum Head (H @ Q = 0): 129 ft
-
Maximum Flow Rate: 120 US g.p.m.
-
Hydraulic Duty Point Flow: 0 US g.p.m.
-
Hydraulic Duty Point Head: 0 ft
-
Maximum Shaft Power: 1.23 hp
Motor Specifications
-
Rated Power (P2): 1.2069 hp
-
Nominal Speed: 3490 rpm
-
Design Speed: 3500 rpm
-
Rated Voltage: 220 V
-
Rated Current: 4.24 A
-
Frequency / Phase: 60 Hz / 3-phase
-
Protection Class: IP55
-
Insulation Class: F
-
Permitted Voltage Tolerance: ±10%
Material Construction
-
Pump Body: AISI 304 Stainless Steel
-
Impeller: AISI 304 Stainless Steel
-
Diffuser: AISI 304 Stainless Steel
-
Seal Housing: AISI 304 Stainless Steel
Mechanical Seal Details
-
Fixed Assembly: Carbon Graphite
-
Rotating Assembly: Ceramic
-
Elastomers: NBR
-
Springs: AISI 316
-
Other Components: AISI 304
Operating Conditions
-
Medium: 100% Clean Water
-
Reference Conditions:
-
Temperature: 39.2°F
-
Density: 62.4 lb/ft³
-
Kinematic Viscosity: 1.69E-5 ft²/s
-
-
Installation Type: Monobloc
Pump Dimensions (inches)
-
A: 2 1/8
-
D: 6 7/8
-
H: 8 13/16
-
H1: 4 7/16
-
H2: 9 5/8
-
L: 16 7/8
-
L1: 6 3/4
-
W: 3
-
Inlet (DNA): Rp 1¼
-
Outlet (DNM): Rp 1
General Information
-
Model: CEA 706/4
-
Weight: 50.705 lb
-
Pump Type: Single-impeller centrifugal electric
