Fully packaged pressure booster set consisting of: 1 to 3 Helix V non self-priming horizontal stainless steel high pressure centrifugal pumps. Each pump has a 1/4 turn ball valve on suction and a 1/4 turn ball valve and a non return valve on discharge. The discharge manifold is equipped with an 8L diaphragm pressure vessel with through-flow fitting to DN 4807, pressure gauge, air vent. Low Pressure/Level Cut Out Pressure Switch (15-250mBar), optional on the suction manifold.
The Wilo-ElectronicControl starts the pump in automatic mode when the system pressure falls below the set pressure by more than the set pressure difference. Once the system pressure has reached the set pressure, the Wilo-ElectronicControl stops the pump after a time interval that has been previously set.
The Wilo ElectronicControl protects the pump against
– Dry run
– Excess current
– Excess water temperature
– Frost
– Short-circuit
– Overvoltage
– Undervoltage
All mounted on a galvanised base frame with anti-vibration mounts.
Operating Data
Fluid media: Water 100 %
Fluid temperature: 20.00 °C
Requested flow:
Requested head:
Number of pumps: 1
Fluid temperature: 3…50 °C
Ambient temperature: 5…40 °C
Maximum operating pressure: 10 bar
Maximum inlet pressure: 1,000 kPa
Control panel
Mains frequency: 50
Phase: 1~
Rated voltage: 230
Protection class switchgear: IP55
Motor data
Rated power: 1.1 kW
Rated voltage: 230
Rated current:
Rated speed: 2,900 1/min
Insulation class: F
Protection class motor: IP55
Materials
Pump housing: 1.4301
Impeller: 1.4307
Shaft: 1.4301
Shaft seal: Q1BE3GG
Gasket material: EPDM
Pipework material: Brass, CW617N
Installation dimensions
Pipe connection on the suction side: G 1¼, PN 10
Pipe connection on the discharge side: G 1¼, PN 10
Ordering information
Brand: Wilo

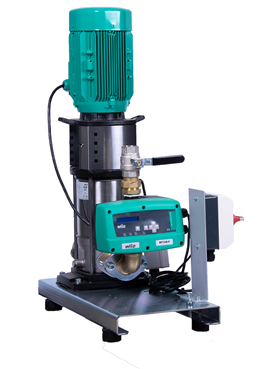

Product description: Centrum SV408
Net weight, approx.: 38 kg
Article number: 29993228
