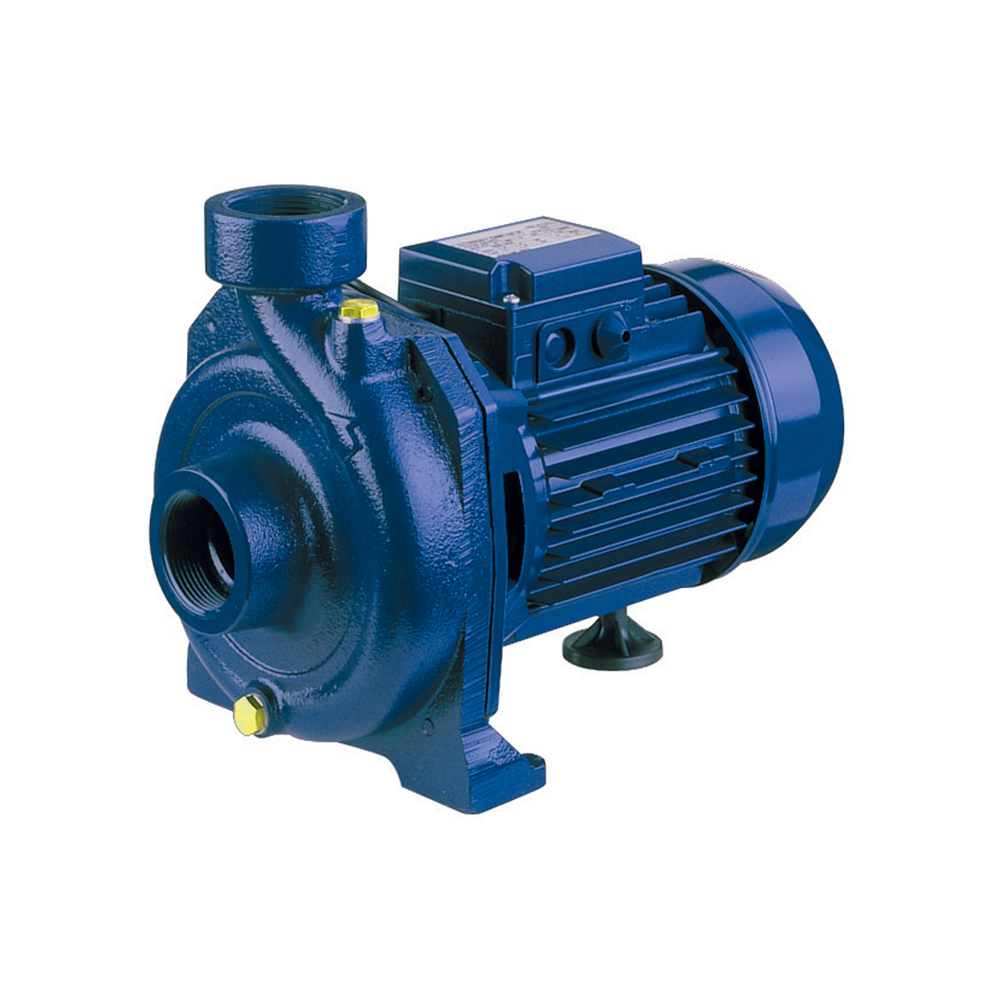

Ebara – CMB 4.00 – Part Number: CMB 4.00
SKU: CMB 4.00
Categories:
Download Data Sheet
Part Number: CMB 4.00
| 1 |
Pump type |
CENTRIFUGAL PUMPS |
Fluid |
Water |
| 2 |
Number of pumps / Reserve |
1 / 0 |
Liquid temperature °C |
20 |
| 3 |
Flow m³/h |
|
Kin. viscosity mm²/s |
1.005 |
| 4 |
Head m |
|
Vapour pressure bar |
0.0234 |
| 5 |
Geodetic head m |
|
PH value |
|
| 6 |
Inlet pressure (pin) bar |
0 |
Density kg/m³ |
998.3 |
| 7 |
Available system NPSH |
|
Solids Weight % |
0 |
| 8 |
Ambient temperature °C |
20 |
|
|
| Booster Set |
| 9 |
Pump Name |
CMB 4.00 |
Frequency Hz |
None |
50 |
| 10 |
Design |
CENTRIFUGAL PUMPS |
Installation type |
None |
STANDARD |
| 11 |
Manufacturer |
EBARA |
ImpellernDiameter |
Max. mm |
189 |
| 12 |
Speed rpm |
2800 |
None |
Designed mm |
189 |
| 13 |
No. of Stage |
1 |
None |
Min. mm |
189 |
| 14 |
Connection Suction side |
UNI ISO 228 |
Flow |
Operating m³/h |
|
| 15 |
Connection Discharge side |
UNI ISO 228 |
None |
Max- m³/h |
16.8 |
| 16 |
Max Working Pressure bar |
8 |
None |
Min- m³/h |
6 |
| 17 |
Shut-off head bar |
4.55 |
Head |
Operating m |
|
| 18 |
Total weight kg |
See the table of “Dimensions”. |
None |
– (Qmax.) m |
36.1 |
| 19 |
Shaft power kW |
|
None |
– (Qmin.) m |
45.4 |
| 20 |
|
|
Max. Shaft Power at max. impeller kW |
None |
3.23 |
| 21 |
Required pump NPSH m |
|
Efficiency % |
None |
|
| Materials |
| 22 |
Impeller |
Brass |
|
|
| 23 |
Casing |
Cast iron |
|
|
| 24 |
Shaft |
AISI 304 (wet extension |
|
|
| 25 |
|
|
|
|
| 26 |
|
|
|
|
| 27 |
|
|
|
|
| Motor |
| 28 |
Manufacturer |
EPE Standard |
Insulation class |
F |
| 29 |
Type |
TEFC_CMB 4.00 T_230_Three Phase |
Phases |
3~ |
| 30 |
Specific design |
IE3 / 50 Hz / Pole pairs 1 |
Frame size |
|
| 31 |
Rated power kW |
3 |
Weight kg |
|
| 32 |
Number of poles |
2 |
Electric voltage V |
230 |
| 33 |
Speed rpm |
2800 |
Electric current A |
11.1 |
| 34 |
Degree of protection |
IP 44 |
|
|
| 35 |
|
|
|
|
