Lowara CO 350/15/D Open Impeller Centrifugal Pump – Technical Specifications
Product Overview

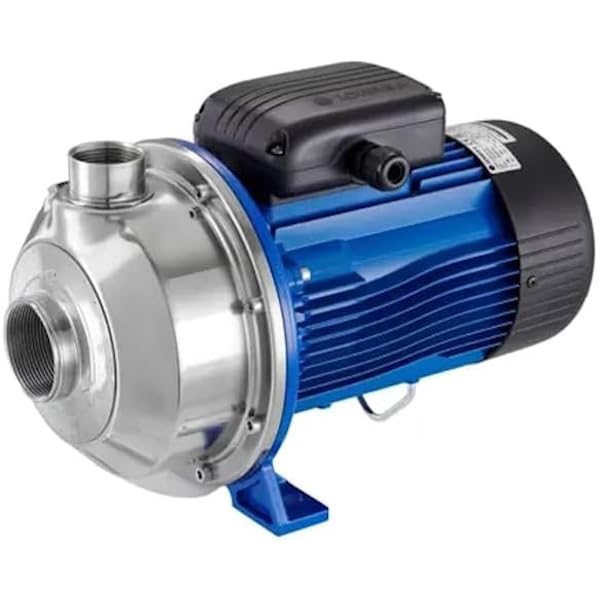

The Lowara CO 350/15/D is an open impeller centrifugal electric pump engineered for clean water circulation in commercial and industrial systems. It features a monobloc configuration with threaded connections and full stainless steel construction, in compliance with ISO 9906:2012 – Grade 3B standards.
Hydraulic Performance
-
Maximum Head (H @ Q = 0): 20.4 m
-
Hydraulic Duty Point Flow: 0 m³/h
-
Hydraulic Duty Point Head: 0 m
-
Maximum Shaft Power: 1.56 kW
Motor Specifications
-
Rated Power (P2): 1.5 kW
-
Nominal Speed: 2870 rpm
-
Design Speed: 2900 rpm
-
Rated Voltage: 230 V
-
Rated Current: 5.49 A
-
Frequency / Phase: 50 Hz / 3-phase
-
Protection Class: IP55
-
Insulation Class: F
-
Permitted Voltage Tolerance: ±10%
Material Construction
-
Pump Body: Stainless Steel
-
Impeller: Stainless Steel
-
Seal Housing: Stainless Steel
-
Shaft Extension: Stainless Steel
Mechanical Seal Details
-
Fixed Assembly: B-resin impregnated carbon
-
Rotating Assembly: V-ceramic
-
Elastomers: V-FKM (FPM)
-
Springs: AISI 316
-
Other Components: AISI 316
Operating Conditions
-
Medium: 100% Pure Water
-
Reference Fluid:
-
Temperature: 4°C
-
Density: 1000 kg/m³
-
Kinematic Viscosity: 1.57 mm²/s
-
-
Installation Type: Monobloc
Pump Dimensions (mm)
-
D: 174
-
H2: 245
-
L: 429
-
L1: 172
-
L2: 147.5
-
Inlet (DNA): Rp 1½
-
Outlet (DNM): Rp 1¼
General Information
-
Model: CO 350/15/D
-
Pump Type: Open impeller centrifugal pump with threaded connections
-
Weight: 21 kg
