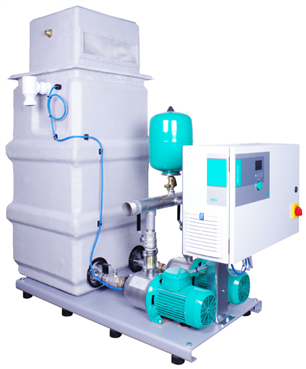

Fully packaged pressure booster set consisting of:
Fully packaged pressure booster set consisting of: 2 MHI non self-priming horizontal stainless steel high pressure centrifugal pumps. Each pump has a 1/4 turn ball valve on suction and a 1/2 turn ball valve and a non-return valve on discharge. The discharge manifold is equipped with an 8 litre diaphragm pressure vessel with through-flow fitting to DN 4807, pressure gauge, air vent and pressure sensor (4-20 mA). Level float switch installed inside the tank.
260 litre WRAS approved fibreglass tank with a removeable AB airgap lid, 3/4″ inlet equilibrium ball valve, overflow and drain connections.
Automatic pump control via Smart Controller SC, high control quality and very simple operation with symbol-based LC display, simple navigation with clear menu, rotary knob for quick setting of parameters, panel or pump mounted frequency controller per pump for variable speed control between 26Hz and 50Hz, door Interlocked isolator, and motor overload units Pipe Fill mode (slow fill) included.
Output:
•+ 24 V voltage output with max. contact strength of 50 mA
•Potential-free collective fault and run signals
•External On/Off mode.
•Standard Modbus for connection to the building automation
– BACnet, CAN, PLR, LON optional
All mounted on a common zinc plated steel base frame with anti-vibration mounts.
Operating Data
Fluid media: Water 100 %
Fluid temperature: 20.00 °C
Requested flow:
Requested head:
Max. delivery head: 69.49 m
Number of pumps: 2
Fluid temperature: 3…50 °C
Ambient temperature: 5…40 °C
Maximum operating pressure: 10 bar
Maximum inlet pressure: 600 kPa
Control panel
Mains frequency: 50
Phase: 1~
Rated voltage: 220-230
Protection class switchgear: IP54
Motor data
Rated power: 1.1 kW
Rated voltage: 230
Rated current:
Rated speed: 2,900 1/min
Activation type: Direct On Line (DOL)
Motor efficiency 50%: 81.5 %
Motor efficiency 75%: 82.7 %
Motor efficiency 100%: 82.7 %
Insulation class: F
Protection class motor: IP54
Materials
Tank:
Pump housing: 1.4301
Impeller: 1.4404
Shaft: 1.4301
Shaft seal: BQ1E3GG
Gasket material: EPDM
Pipework material: 1.4404
Installation dimensions
Pipe connection on the suction side: Rp ¾, PN 6
Pipe connection on the discharge side: R 2, PN 10
Overflow connection: Ø 50
Gross volume of the tank: 260 l
Ordering information
Net weight, approx.: 126 kg
Brand: Wilo
Product description: COR 2 MHI 206 /SCe EM T260 AB
Article number: 29992374
