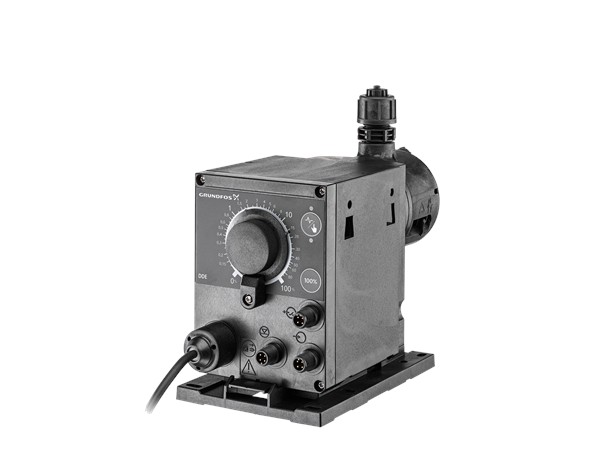

| Product name | DDE 6-10 B-SS/T/SS-X-32AAFG |
| Product No | 97720948 |
| EAN number | 5710622710687 |
| Max. Flow | 6 l/h |
| Min flow | 6.0 ml/h |
| Turn-down ratio | 1:1000 |
| Approvals | CE,CSA-US,NSF61,EAC,RCM |
| Valve type | Spring-Loaded (HV-version) |
| Model | A |
| Maximum viscosity at 100 % | 600 mPas |
| Maximum viscosity in slow mode 50 % | N/A mPas |
| Maximum viscosity in slow mode 25 % | N/A mPas |
| Accuracy of repeatability | 5 % |
| Dosing head | Stainless Steel 1.4435 |
| Valve ball | Stainless steel |
| Gasket | PTFE |
| Range of ambient temperature | 0 .. 45 °C |
| Maximum operating pressure | 10 bar |
| Type of inlet connection | Rp |
| Type of outlet connection | Rp |
| Installation set (Yes/No) | NO |
| Installation type | No installation set |
| Max. Suction lift during operation | 6 m |
| Max. Suction lift during priming | 2 m |
| Pumped liquid | Water |
| Liquid temperature range | 0 .. 45 °C |
| Selected liquid temperature | 20 °C |
| Density | 998.2 kg/m³ |
| Power input P1 | 19 W |
| Mains frequency | 50 / 60 Hz |
| Rated voltage | 1 x 100-240 V |
| Enclosure class (IEC 34-5) | IP65 / TYPE 4X |
| Length of cable | 1.5 m |
| Power plug | Schuko plug |
| Inrush current | 25A at 230V for 2ms |
| Control variant | B |
| Ext. Stop input | No |
| Output relays | No |
| Net weight | 2.48 kg |
| Gross weight | 3.08 kg |
DDE 6-10 B-SS/T/SS-X-32AAFG
