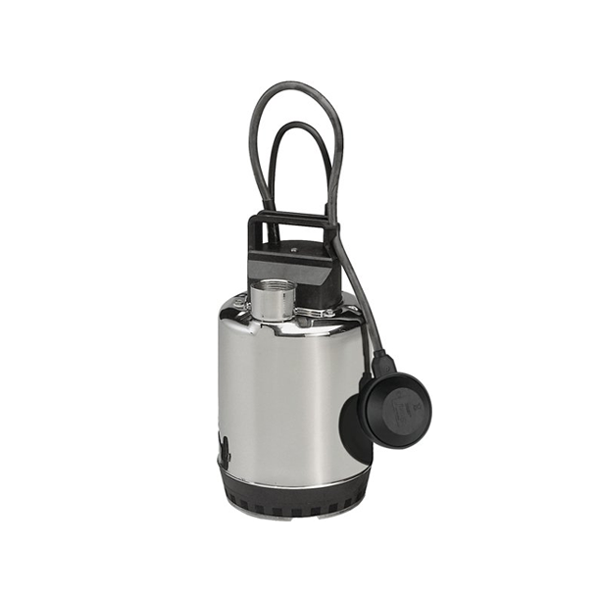

Pump Model: DOC 76
Manufacturer & Type
-
Brand: Lowara (Xylem)
-
Model: DOC 76
-
Pump Type: Submersible sump pump
-
Installation: Submersible
Hydraulic Performance
-
Flow at Duty Point: 0 US g.p.m.
-
Head at Duty Point: 0 ft
-
Maximum Head (H(Q=0)): 34.6 ft
-
Maximum Shaft Power: 0.484 hp
-
Total Hydraulic Efficiency: 44%
-
Standard Compliance: ISO 9906:2012 – Grade 3B
Motor and Electrical Specifications
-
Rated Power (P2): 0.73756 hp
-
Nominal Speed: 3385 rpm (up to 3500 rpm)
-
Rated Voltage: 230 V
-
Rated Current: 3.45 A
-
Frequency: 60 Hz
-
Phase: Single-phase (1~)
-
Protection Class: IP X8
-
Insulation Class: B
-
Permitted Voltage Tolerance: ±10%
Materials and Construction
-
Pump Body: PPO resin + 20% glass fiber
-
Suction Strainer: PPO resin + 20% glass fiber
-
Impeller: PA 66 + 30% glass fiber
-
External Case: Stainless Steel
Shaft Seal
-
(Not explicitly listed; typical DOC series uses Carbon/Ceramic combinations.)
Physical Specifications
-
Weight: 13.228 lb
-
Discharge Port: Rp 1 1/4
-
Dimensions (in inches):
-
D: 6 1/8
-
F: 11 1/4
-
H: 9
-
X: 13/16
-
Fluid Parameters
-
Medium: Pure Water (100%)
-
Temperature: 39.2°F
-
Density: 62.4 lb/ft³
-
Kinematic Viscosity: 1.69E-5 ft²/s
