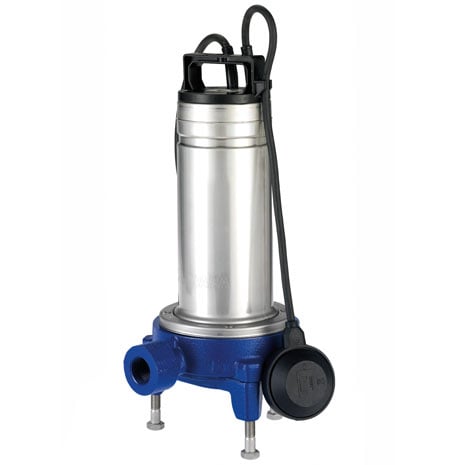

Pump Model: DOMO 156VX
Manufacturer & Type
-
Brand: Lowara (Xylem)
-
Model: DOMO 156VX
-
Pump Type: Submersible wastewater pump
-
Installation Type: Submersible
Hydraulic Performance
-
Flow at Duty Point: 0 US g.p.m.
-
Head at Duty Point: 0 ft
-
Maximum Head (H(Q=0)): 33 ft
-
Maximum Shaft Power: 1.18 hp
-
Total Hydraulic Efficiency: 29%
-
Performance Standard: ISO 9906:2012 – Grade 3B
Motor and Electrical Specifications
-
Rated Power (P2): 1.4751 hp
-
Nominal Speed: 3470 rpm
-
Rated Voltage: 230 V
-
Rated Current: 7.08 A
-
Frequency: 60 Hz
-
Phase: Single-phase (1~)
-
Protection Class: IP X8
-
Insulation Class: F
-
Permitted Voltage Tolerance: ±10%
Materials and Construction
-
Pump Body: Stainless Steel
-
Impeller: Stainless Steel
-
Suction Flange: Stainless Steel
-
Fixing Ring: Stainless Steel
Shaft Seal Configuration
-
Fixed Assembly:
-
Seal Material: Silicon Carbide (Q1)
-
Elastomers: P-NBR
-
Springs: AISI 316
-
-
Rotating Assembly:
-
Seal Material: Silicon Carbide (Q1)
-
Springs: AISI 316
-
Physical Specifications
-
Weight: 28.66 lb
-
Discharge Port: Rp2
-
Dimensions (inches):
-
C: 7 13/16
-
H: 18 1/4
-
H1: 4 3/8
-
H2: 16 9/16
-
L: 19 1/2
-
L1: 13 3/4
-
L2: 5 11/16
-
Fluid Parameters
-
Medium: Pure Water (100%)
-
Temperature: 39.2°F
-
Density: 62.4 lb/ft³
-
Kinematic Viscosity: 1.69 × 10⁻⁵ ft²/s
