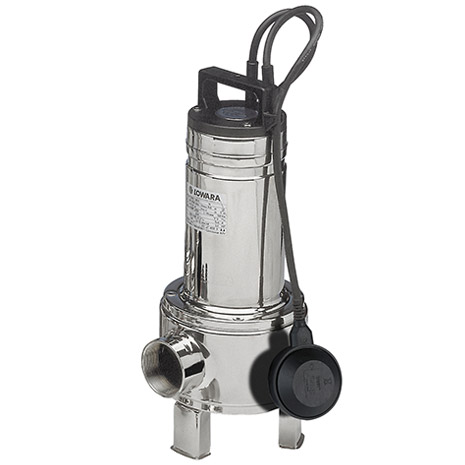

Pump Model: DOMO 20T
Manufacturer & Type
-
Brand: Lowara (Xylem)
-
Model: DOMO 20T
-
Pump Type: Submersible wastewater pump
-
Installation Type: Submersible
Hydraulic Performance
-
Flow at Duty Point: 0 m³/h
-
Head at Duty Point: 0 m
-
Maximum Head (H(Q=0)): 14.8 m
-
Maximum Shaft Power: 1.28 kW
-
Overall Hydraulic Efficiency: 47%
-
Performance Standard: ISO 9906:2012 – Grade 3B
Motor and Electrical Specifications
-
Rated Power (P2): 1.5 kW
-
Nominal Speed: 2830 rpm (design speed 2900 rpm)
-
Rated Voltage: 400 V
-
Rated Current: 3.81 A
-
Frequency: 50 Hz
-
Phase: Three-phase (3~)
-
Protection Class: IP X8
-
Insulation Class: F
-
Permitted Voltage Tolerance: ±10%
Materials and Construction
-
Pump Body: Stainless Steel
-
Impeller: Stainless Steel
-
Suction Flange: Stainless Steel
-
Fixing Ring: Stainless Steel
Shaft Seal Configuration
-
Fixed Assembly:
-
Seal Material: Q1 – Silicon Carbide
-
Elastomers: P-NBR
-
Springs: G – AISI 316
-
-
Rotating Assembly:
-
Seal Material: Q1 – Silicon Carbide
-
Springs: G – AISI 316
-
Physical Specifications
-
Weight: 14.6 kg
-
Discharge Port: Rp2
-
Dimensions (mm):
-
C: 198
-
H: 468
-
H1: 111.5
-
L2: Not specified
-
Fluid Parameters
-
Medium: Pure Water (100%)
-
Temperature: 4°C
-
Density: 1000 kg/m³
-
Kinematic Viscosity: 1.57 mm²/s
