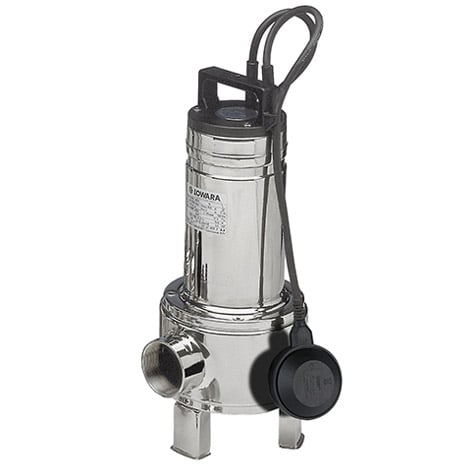

Pump Model: DOMO 7VX
Manufacturer & Type
-
Brand: Lowara (Xylem)
-
Model: DOMO 7VX
-
Pump Type: Submersible wastewater pump
-
Installation: Submersible
Hydraulic Performance
-
Flow at Duty Point: 0 m³/h
-
Head at Duty Point: 0 m
-
Maximum Head (H(Q=0)): 9.12 m
-
Maximum Shaft Power: 0.387 kW
-
Total Hydraulic Efficiency: 30%
-
Performance Standard: ISO 9906:2012 – Grade 3B
Motor and Electrical Specifications
-
Rated Power (P2): 0.55 kW
-
Nominal Speed: 2880 rpm
-
Rated Voltage: 230 V
-
Rated Current: 3.91 A
-
Frequency: 50 Hz
-
Phase: Single-phase (1~)
-
Protection Class: IP X8
-
Insulation Class: F
-
Permitted Voltage Tolerance: ±10%
Materials and Construction
-
Pump Body: Stainless Steel
-
Impeller: PA 66 + 30% Glass Fiber
-
Suction Flange: Stainless Steel
-
Fixing Ring: Stainless Steel
Shaft Seal Configuration
-
Fixed Assembly:
-
Seal Material: Silicon Carbide (Q1)
-
Elastomers: P-NBR
-
Springs: AISI 316 (G)
-
-
Rotating Assembly:
-
Seal Material: Silicon Carbide (Q1)
-
Springs: AISI 316 (G)
-
Physical Specifications
-
Weight: 10.2 kg
-
Discharge Port: Rp1 1/2
-
Dimensions (mm):
-
C: 193
-
H: 391
-
H1: 88
-
H2: 375
-
L: 420
-
L1: 275
-
L2: 145
-
Fluid Parameters
-
Medium: Pure Water (100%)
-
Temperature: 4°C
-
Density: 1000 kg/m³
-
Kinematic Viscosity: 1.57 mm²/s
