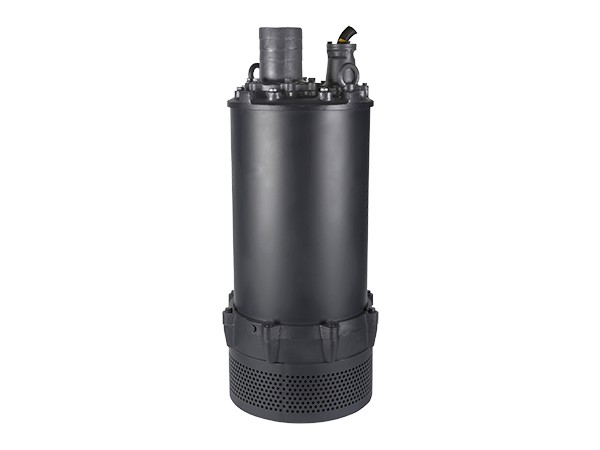

| Product name | DWK.E.10.100.220.5.1D.R |
| Product No | 96922747 |
| EAN number | 5700313725359 |
| Rated flow | 25 l/s |
| Maximum flow | 46.2 l/s |
| Rated head | 45.6 m |
| Min. head | 6.17 m |
| Maximum head | 66.6 m |
| Actual impeller diameter | 253 mm |
| Type of impeller | Enclosed impeller |
| Max. Particle | 10 mm |
| Max. hydraulic efficiency | 53 % |
| Curve tolerance | ISO9906:2012 3B |
| Pump housing | Cast iron |
| Impeller | HI-Chrome |
| Motor house | Cast iron |
| Shaft seal | SIC |
| Secondary shaft seal | CERAMIC-CARBON |
| Range of ambient temperature | 0 .. 40 °C |
| Maximum operating pressure | 5.7 bar |
| Type of outlet connection | Hose |
| Size of outlet connection | DN 100 |
| Pressure rating for outlet connection | PN 10 |
| Maximum installation depth | 25 m |
| Liquid temperature range | 0 .. 40 °C |
| Selected liquid temperature | 20 °C |
| Density | 998.2 kg/m³ |
| Min. pH-value | 4 |
| Power input P1 | 24.66 kW |
| Rated power – P2 | 22 kW |
| Mains frequency | 50 Hz |
| Rated voltage | 3 x 380-415 V |
| Voltage tolerance | +5/-5 % |
| Max starts per hour | 15 |
| Rated current | 43 A |
| Rated current at 3/4 load | 34 A |
| Rated current at 1/2 load | 25 A |
| Cos phi – power factor | 0.855 |
| Cos phi – p.f. at 3/4 load | 0.824 |
| Cos phi – p.f. at 1/2 load | 0.747 |
| Rated speed | 2850 rpm |
| Efficiency at full load | 89.2 % |
| Efficiency at 3/4 load | 88.6 % |
| Efficiency at 1/2 load | 86.7 % |
| Number of poles | 2 |
| Method of start | Y/D |
| Enclosure class (IEC 34-5) | IP68 |
| Insulation class (IEC 85) | F |
| Explosion proof | no |
| Ex-protection standard | PTO |
| Power cable type | PNCT |
| Length of power cable | 10 m |
| Cable description | 7X10MM2+6X1.5MM2 |
| Water-in-oil sensor | without water-in-oil sensor |
| Seal sensor | Y |
| Net weight | 408 kg |
| Gross weight | 503 kg |
| Shipping volume | 1.7 m³ |
DWK.E.10.100.220.5.1D.R
