Product Name

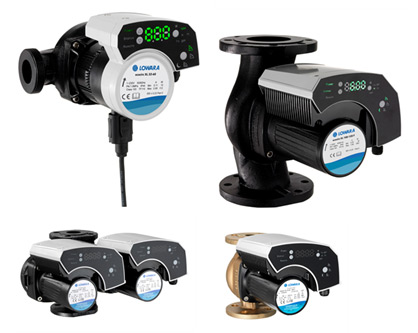

Lowara Ecocirc XL 32-40
General Specifications
-
Standard: ISO 9906:2012 – Grade 3B
-
Rated Voltage: 230 V
-
Frequency: 50 Hz
-
Rated Current: 0.5 A
-
Protection Class: IP 44
-
Insulation Class: F
-
Specific EEI: ≤ 0.23
-
Sound Pressure Level: ≤ 38 dB(A)
-
Leakage Current: < 3.5 mA
-
Digital Input: Contact load 5V, 10 mA
-
Digital Output: Vmax < 250 VAC / Imax < 2 A
-
Analog Input: 0–10 V / 4–20 mA
-
Communication Protocol: None
-
Pressure Rating: PN 6/10
-
Operating Medium: Water (100%)
-
Operating Temperature:
-
Heating pumps: -10°C to +110°C
-
Domestic hot water pumps: -10°C to +85°C
-
Hydraulic Performance
-
Max Head: 4.2 m
-
Max Flow Rate: ~4.4 m³/h
-
Power Input (P1): up to 0.052 kW
Materials
-
Pump Housing: Cast Iron
-
Rotor Can: Stainless Steel
-
Motor Housing: Aluminum
-
Casing Plate: Stainless Steel
-
Shaft: Stainless Steel
-
Neck Ring: Stainless Steel
-
Impeller: PPO
-
Bush Bearing: Carbon, resin impregnated
-
Mechanical Seal Ball: 1/2″ Aluminum
-
O-Rings: Polycarbonate
Pump Dimensions (mm)
-
B1: 191
-
B2: 145
-
B3: 46
-
B4: 83
-
B5: 43
-
C3: 81
-
C4: 120
-
C5: 39
-
G: G 2 – Rp 1¼
-
H1: 148
-
H2: 59
-
H3: 74
-
H4: 40
-
L (Port-to-Port): 180
-
Net Weight: 3 kg
-
Gross Weight: 3.9 kg
