Product Name

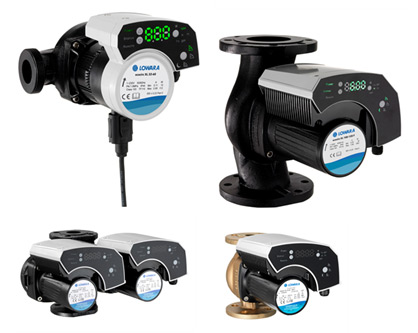

Lowara Ecocirc XL 32-80 F
General Specifications
-
Standard: ISO 9906:2012 – Grade 3B
-
Rated Voltage: 230 V
-
Frequency: 50 Hz
-
Rated Current: 1.4 A
-
Protection Class: IP 44
-
Insulation Class: F
-
Specific EEI: ≤ 0.23
-
Sound Pressure Level: ≤ 45 dB(A)
-
Leakage Current: < 3.5 mA
-
Digital Input: Contact load 5V, 10 mA
-
Digital Output: Vmax < 250 VAC / Imax < 2 A
-
Analog Input: 0–10 V / 4–20 mA
-
Communication Protocol: None
-
Pressure Rating: PN 6/10
-
Electrical Connection: Terminals
-
Operating Medium: Water (100%)
-
Operating Temperature:
-
Heating: -10°C to +110°C
-
Domestic Hot Water: -10°C to +85°C
-
Hydraulic Performance
-
Power Input (P1): Up to 0.20 kW
-
Flow Range: 0 to 10 m³/h
-
Head Range: 0 to 8.5 m
Material Composition
-
Pump Housing: Cast Iron
-
Motor Housing: Aluminum
-
Rotor Can: Stainless Steel
-
Shaft: Stainless Steel
-
Thrust Bearing: Aluminum
-
Bush Bearing: Carbon, resin impregnated
-
Wear Ring: PPS
-
Impeller: Stainless Steel
-
O-Rings: EPDM
-
Bearing Plate: Stainless Steel
-
Control Box: Stainless Steel
Pump Dimensions (mm)
-
B1: 266
-
B2: 208
-
B3: 58
-
B4: 118
-
B5: 51
-
C3: 116
-
C4: 178
-
C5: 62
-
D1: 140
-
D2: 32
-
D3: 90 / 100
-
D4: 4 x 14 / 19
-
D5: 76
-
G: DN 32
-
H1: 220
-
H2: 94
-
H3: 96
-
H4: 76
-
L (Port-to-Port): 220 mm
-
Net Weight: 9.8 kg
-
Gross Weight: 13.3 kg
