Product Name

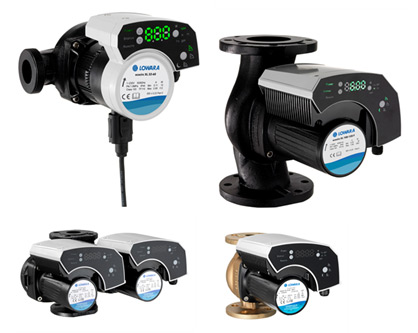

Lowara Ecocirc XL D 32-120 F
General Specifications
-
Standard: ISO 9906:2012 – Grade 3B
-
Rated Voltage: 230 V
-
Frequency: 50 Hz
-
Rated Current: 2.3 A
-
Protection Class: IP 44
-
Insulation Class: F
-
Energy Efficiency Index (EEI): ≤ 0.23
-
Sound Pressure Level: ≤ 48 dB(A)
-
Leakage Current: < 3.5 mA
-
Electrical Connection: Terminals
-
Digital Input: Contact load 5V, 10 mA
-
Digital Output: Vmax < 250 VAC / Imax < 2 A
-
Analog Input: 0–10 V / 4–20 mA
-
Communication Protocol: None
-
Nominal Pressure: PN 6/10
-
Operating Medium: Water (100%)
-
Reference Conditions: 4°C, 1000 kg/m³, 1.57 mm²/s
-
Liquid Temperature Range:
-
Heating Pumps: -10°C to +110°C
-
Domestic Hot Water: -10°C to +85°C
-
Hydraulic Performance
-
Power Input (P1): Max ~0.95 kW
-
Max Head: ~12.5 m
-
Max Flow Rate: ~26 m³/h
Material Composition
-
Pump Housing: Cast Iron
-
Motor Housing: Aluminum
-
Rotor Can: Stainless Steel
-
Shaft: Stainless Steel
-
Thrust Bearing: Aluminum
-
Bush Bearing: Carbon, resin impregnated
-
Impeller: Stainless Steel
-
Wear Ring: PPS
-
Bearing Plate: Stainless Steel
-
O-Rings: EPDM
-
Control Box: Stainless Steel
-
Flanged Connection: DN 32
Pump Dimensions (mm)
-
A1: 215
-
A2: 107.5
-
A3: 43
-
A4: 97
-
A5: 80
-
B1: 322
-
B2: 252
-
B3: 70
-
B4: 132
-
B5: 53
-
C1: 185.5
-
C2: 235.5
-
C3: 128
-
C4: 421
-
C5: 78
-
D1: 140
-
D2: 32
-
D3: 90 / 100
-
D4: 4 × 14 / 19
-
D5: 76
-
G: DN 32
-
L (Port-to-Port): 220 mm
-
Net Weight: 27.4 kg
-
Gross Weight: 34.9 kg
