Product Name

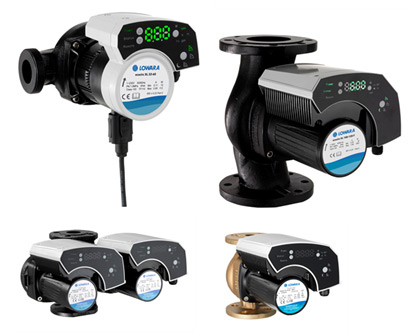

Lowara Ecocirc XL D 50-120 F
General Specifications
-
Performance Standard: ISO 9906:2012 – Grade 3B
-
Rated Voltage: 230 V
-
Frequency: 50 Hz
-
Rated Current: 4 A
-
Protection Class: IP 44
-
Insulation Class: F
-
Energy Efficiency Index (EEI): ≤ 0.23
-
Nominal Pressure: PN 6/10
-
Sound Pressure Level: ≤ 52 dB(A)
-
Leakage Current: < 3.5 mA
-
Electrical Connection: Terminals
-
Digital Input: Contact load 5V, 10 mA
-
Digital Output: Vmax < 250 VAC / Imax < 2 A
-
Analog Input: 0–10 V / 4–20 mA
-
Communication Protocol: None
-
Operating Medium: Water (100%)
-
Reference Conditions: 4°C, 1000 kg/m³, 1.57 mm²/s
-
Liquid Temperature Range:
-
Heating Pumps: -10°C to +110°C
-
Domestic Hot Water: -10°C to +85°C
-
Hydraulic Performance
-
Max Head: ~12.5 m
-
Max Flow Rate: ~60 m³/h
-
Power Input (P1): ~1.70–1.80 kW (estimated from chart)
Material Composition
-
Pump Housing: Cast Iron
-
Motor Housing: Aluminum
-
Rotor Can: Stainless Steel
-
Shaft: Stainless Steel
-
Thrust Bearing: Aluminum
-
Bush Bearing: Carbon, resin impregnated
-
Impeller: Stainless Steel
-
Wear Ring: PPS
-
Bearing Plate: Stainless Steel
-
O-Rings: EPDM
-
Control Box: Stainless Steel
-
Flanged Connection: DN 50
Pump Dimensions (mm)
-
A1: 240
-
A2: 120
-
A3: 60
-
A4: 125
-
A5: 95
-
B1: 368
-
B2: 290
-
B3: 78
-
B4: 147
-
B5: 60
-
C1: 202
-
C2: 268
-
C3: 148
-
C4: 470
-
C5: 82
-
D1: 165
-
D2: 50
-
D3: 110 / 125
-
D4: 4 × 14 / 19
-
D5: 100
-
G: DN 50
-
L (Port-to-Port): 280 mm
-
Net Weight: 41.8 kg
-
Gross Weight: 52.3 kg
