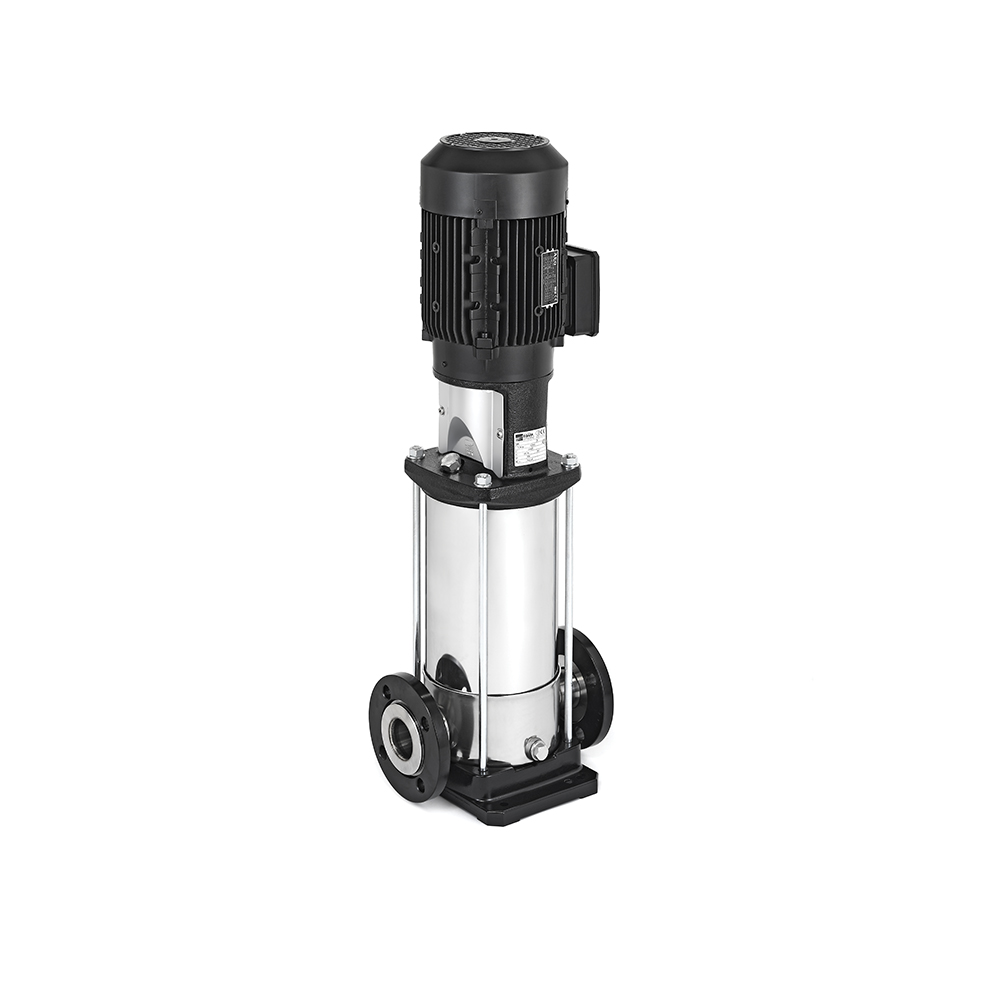

Part Number: EVMSG32 6-2F6HQ1BEG/18.5
| 1 | Pump type | VERTICAL MULTISTAGE PUMP | Fluid | Water |
| 2 | Number of pumps / Reserve | 1 / 0 | Liquid temperature °C | 20 |
| 3 | Flow m³/h | Kin. viscosity mm²/s | 1.005 | |
| 4 | Head m | Vapour pressure bar | 0.0234 | |
| 5 | Geodetic head m | PH value | ||
| 6 | Inlet pressure (pin) bar | 0 | Density kg/m³ | 998.3 |
| 7 | Available system NPSH | Solids Weight % | 0 | |
| 8 | Ambient temperature °C | 20 |
| Booster Set | |||||
|---|---|---|---|---|---|
| 9 | Pump name | EVMSG32 6-2F6HQ1BEG/18.5 | Frequency Hz | None | 60 |
| 10 | Design | VERTICAL MULTISTAGE PUMP | Installation type | None | Round flange |
| 11 | Manufacturer | EBARA | ImpellernDiameter | Max. mm | – |
| 12 | Speed rpm | 3540 | None | Designed mm | 117,6 (No.4) / 108 (No.2) |
| 13 | No. of Stage | 6 | None | Min. mm | – |
| 14 | Connection Suction side | Flow | Operating m³/h | ||
| 15 | Connection Discharge side | None | Max- m³/h | 48 | |
| 16 | Max Working Pressure bar | 25 | None | Min- m³/h | 18 |
| 17 | Shut-off head bar | 17.41 | Head | Operating m | |
| 18 | Total weight kg | See the table of “Dimensions”. | None | – (Qmax.) m | 91.9 |
| 19 | Shaft power kW | None | – (Qmin.) m | 161.4 | |
| 20 | Max. Shaft Power at max. impeller kW | None | 17.57 | ||
| 21 | Required pump NPSH m | Efficiency % | None | ||
| Materials | ||||
|---|---|---|---|---|
| 22 | Impeller | AISI 304 | ||
| 23 | Intermediate casing | AISI 304 | ||
| 24 | Bottom casing | Cast Iron EN GJS 400-15 EN 1563 | ||
| 25 | Casing cover | AISI 304 | ||
| 26 | Shaft | AISI 304 | ||
| 27 | O-ring | EPDM | ||
| Motor | ||||
|---|---|---|---|---|
| 28 | Manufacturer | ATB | Insulation class | F |
| 29 | Type | TEFC_EVMS32 6-2/18.5_380_Three Phase | Phases | 3~ |
| 30 | Specific design | – / 60 Hz / Pole pairs 1 | Frame size | 160 |
| 31 | Rated power kW | 18.5 | Weight kg | 109 |
| 32 | Number of poles | 2 | Electric voltage V | 380 |
| 33 | Speed rpm | 3555 | Electric current A | 33.7 |
| 34 | Degree of protection | IP56 | ||
