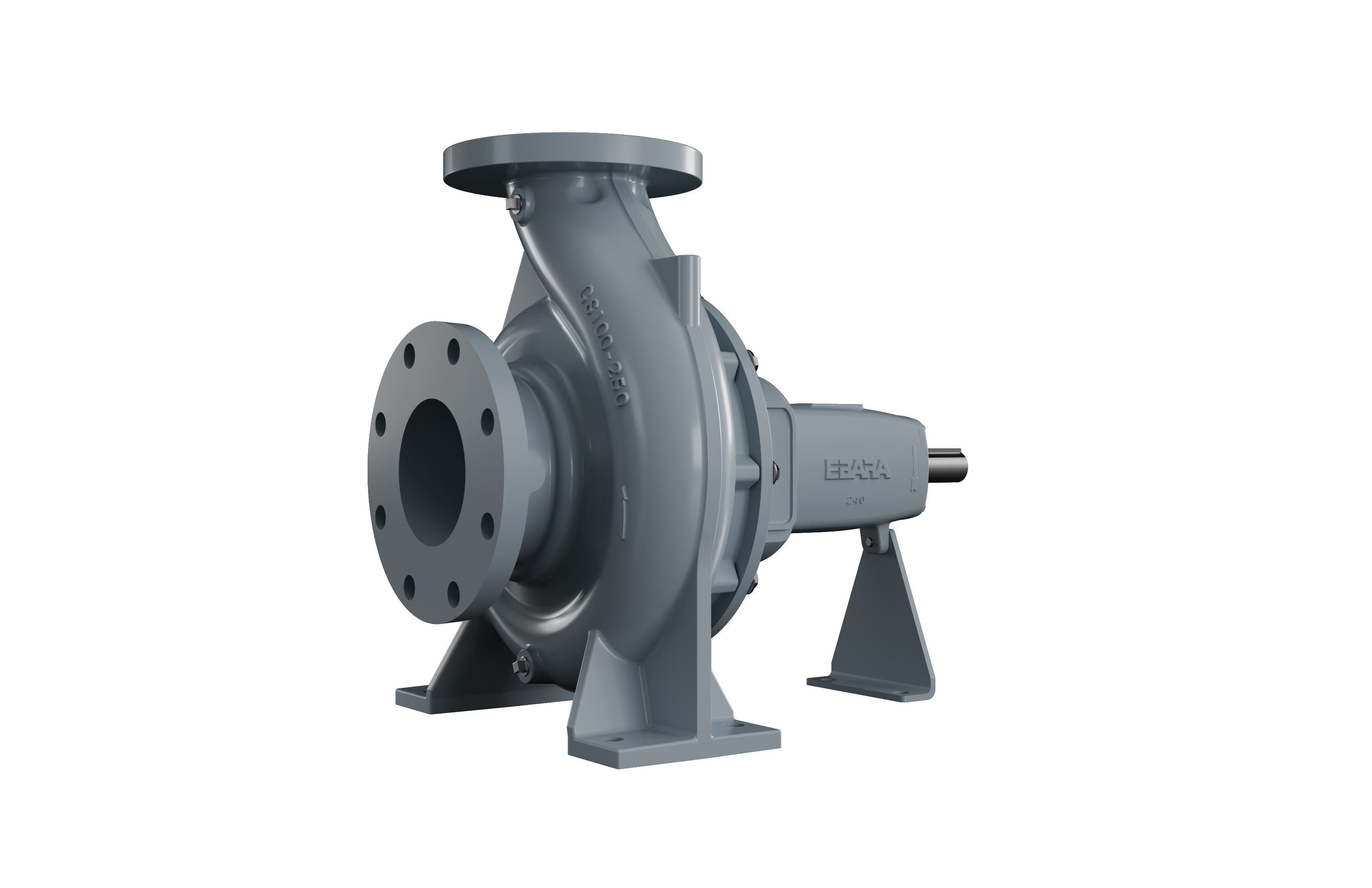

Part Number: GSS 150-500 /160
| 1 | Pump type | End Suction Volute Pump | Fluid | Water |
| 2 | Number of pumps / Reserve | 1 / 0 | Liquid temperature °C | 20 |
| 3 | Flow m³/h | Kin. viscosity mm²/s | 1.005 | |
| 4 | Head m | Vapour pressure bar | 0.0234 | |
| 5 | Geodetic head m | PH value | ||
| 6 | Inlet pressure (pin) bar | 0 | Density kg/m³ | 998.3 |
| 7 | Available system NPSH | Solids Weight % | 0 | |
| 8 | Ambient temperature °C | 20 |
| Booster Set | |||||
|---|---|---|---|---|---|
| 9 | Pump Name | GSS 150-500 /160 | Frequency Hz | None | 50 |
| 10 | Design | End Suction Volute Pump | Installation type | None | with Channel base, motor |
| 11 | Manufacturer | EBARA | ImpellernDiameter | Max. mm | 511 |
| 12 | Speed rpm | 1450 | None | Designed mm | 511 |
| 13 | No. of Stage | 1 | None | Min. mm | 396 |
| 14 | Connection Suction side | EN PN16 | Flow | Operating m³/h | |
| 15 | Connection Discharge side | EN PN16 | None | Max- m³/h | 587 |
| 16 | Max Working Pressure bar | 16 | None | Min- m³/h | 76.4 |
| 17 | Shut-off head bar | 8.43 | Head | Operating m | |
| 18 | Total weight kg | See the table of “Dimensions”. | None | – (Qmax.) m | 64.8 |
| 19 | Shaft power kW | None | – (Qmin.) m | 85.3 | |
| 20 | Max. Shaft Power at max. impeller kW | None | 130.09 | ||
| 21 | Required pump NPSH m | Efficiency % | None | ||
| Materials | ||||
|---|---|---|---|---|
| 22 | Casing | SCS13 | ||
| 23 | Impeller | SCS13 | ||
| 24 | Shaft | SUS329J3L/S35C | ||
| 25 | Case wear ring | SUS316 | ||
| 26 | O-ring | FKM | ||
| 27 | Mechanical Seal | SiC/Carbon/FKM | ||
| Motor | ||||
|---|---|---|---|---|
| 28 | Manufacturer | EBARA Standard | Insulation class | F |
| 29 | Type | 315LB_160_3_380 | Phases | 3~ |
| 30 | Specific design | TEFC/B3/AESV1S / 50 Hz / Pole pairs 2 | Frame size | 315LB |
| 31 | Rated power kW | 160 | Weight kg | 990 |
| 32 | Number of poles | 4 | Electric voltage V | 380 |
| 33 | Speed rpm | 1482 | Electric current A | 296 |
| 34 | Degree of protection | IP55 | ||
