| Product name | Hydro Solo-E CRE 20-3 |
| Product No | 91048910 |
| EAN number | 5712607749156 |
| Rated flow | 23.88 m³/h |
| Rated head | 50.28 m |
| Stages | 3 |
| Impellers | 3 |
| Primary shaft seal | HQQE |
| Code for shaft seal | HQQE |
| Pump No | 99071657 |
| Base | Cast iron |
| Impeller | Stainless steel |
| Maximum ambient temperature | 50 °C |
| Maximum operating pressure | 10 bar |
| Standard for inlet connection | DIN |
| Type of inlet connection | DIN |
| Type of outlet connection | Rp |
| Size of inlet connection | DN 50 |
| Size of outlet connection | DN 50 |
| Flange size for motor | FF265 |
| Pumped liquid | Water |
| Liquid temperature range | 0 .. 60 °C |
| Selected liquid temperature | 20 °C |
| Density | 998.2 kg/m³ |
| Motor type | 132SE |
| Rated power – P2 | 5.5 kW |
| Mains frequency | 50 / 60 Hz |
| Rated voltage | 3 x 380-500 V |
| Rated current | 10.3-8.20 A |
| Cos phi – power factor | 0.92-0.88 |
| Rated speed | 360-4000 rpm |
| Enclosure class (IEC 34-5) | IP55 |
| Insulation class (IEC 85) | F |
| Built-in motor protection | ELEC |
| Motor No | 92984047 |
| Control type | ME |
| Tank volume | 33 l |
| Net weight | 111 kg |
| Gross weight | 140 kg |
| Shipping volume | 0.6 m³ |
| Product range | International |
| Config. file no | 99059173 |
| Danish VVS No. | 385550503 |
| Finnish LVI No. | 4925343 |

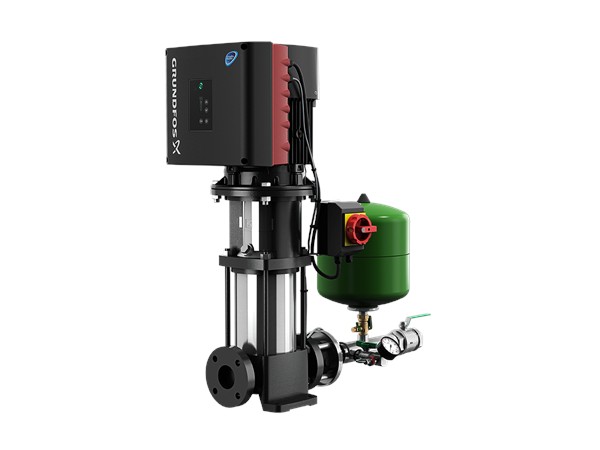

Hydro Solo-E CRE 20-3
