Self-priming single-stage jet pump for water supply, irrigation and rainwater utilisation. Self-priming up to 8 m. Electrical connection via a terminal box. All parts that come into contact with fluids are corrosion-resistant.
Materials
Pump housing: EN-GJL-200
Shaft: 1.0301
Shaft seal: BQ1PFF
Gasket material: NBR
Impeller: PPE/PS-GF20
Stage chamber material:
Operating Data
Fluid media: Water 100 %
Fluid temperature: 20.00 °C
Fluid concentration: 100.00 %
Requested flow:
Requested head:
Min. fluid temperature: 5 °C
Max. fluid temperature: 35 °C
Maximum operating pressure: 6 bar
Discharge port: G 1, PN 6
Max. ambient temperature: 40 °C
Motor data
Mains connection: 1~230V/50 Hz
Voltage tolerance: +-10 %
Rated power: 0.6 kW
Rated current: 3.8 A
Rated speed: 2,850 1/min
Insulation class: F
Protection class: IPX4
Installation dimensions
Pipe connection on the suction side: G 1, PN 6
Pipe connection on the discharge side: G 1, PN 6
Ordering information
Net weight, approx.: 9.4 kg
Brand: Wilo

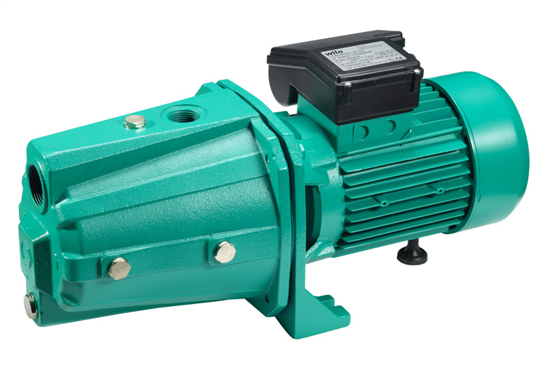

Product description: Initial JET 3-4
Article number: 4185607
