Operating Data
Fluid media: Water 100 %
Fluid temperature: 20.00 °C
Requested flow:
Requested head:
Max. delivery head: 55.00 m
Number of pumps: 1
Fluid temperature: 0…40 °C
Ambient temperature: 0…40 °C
Maximum operating pressure: 10 bar
Maximum inlet pressure: 450 kPa
Motor data
Mains connection: 1~230V/50 Hz
Rated power: 1.1 kW
Rated current: 10 A
Rated speed: 3,600 1/min
Activation type:
Motor efficiency 50%:
Motor efficiency 75%:
Motor efficiency 100%:
Insulation class: F
Protection class motor: IPX4
Protection class switchgear:
Materials
Tank:
Pump housing: PA66-GF50
Impeller: PPE/PS-GF20
Shaft: 1.4057
Shaft seal: BXPFF
Gasket material:
Pipework material:
Installation dimensions
Pipe connection on the suction side: Rp ½, PN 6
Pipe connection on the discharge side: Rp 1, PN 10
Overflow connection: Ø22mm
Gross volume of the tank: 150 l
Ordering information
Net weight, approx.:
Brand: Wilo

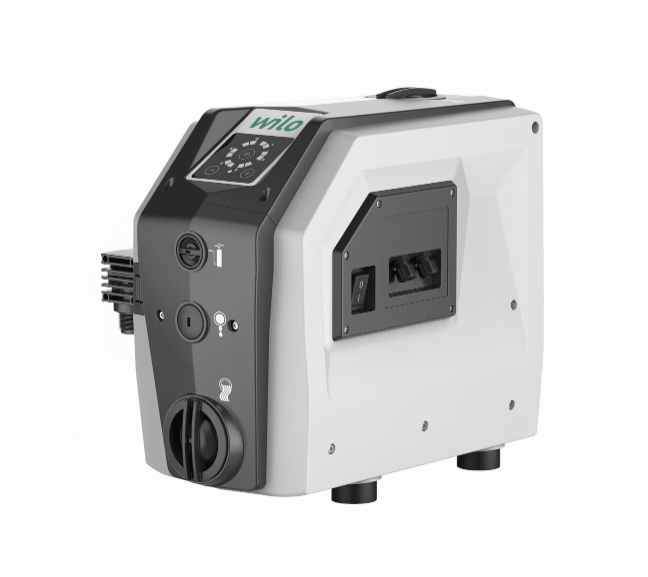

Product description: Isar BOOST5 E5 T150
Article number: 2815094
