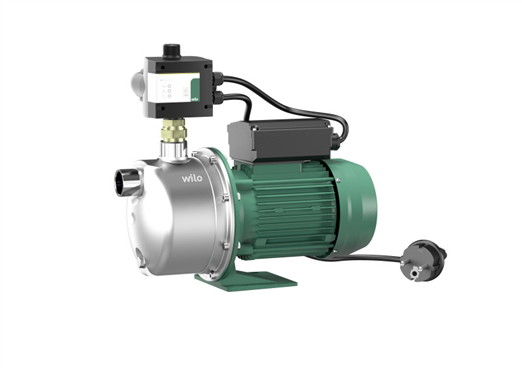

Centrifugal pump system with compact design with horizontal suction and vertical pressure port, consisting of: self-priming jet pump incl. support frame. Directly flanged AC motor with built-in thermal motor protection switch and condenser.
Pump control via electronic pressure and flow monitor with built-in low-water protection and non-return valve. All parts that come into contact with the fluid are corrosion-proof. Pump system ready for connection and pre-assembled and wired with 2 m cable and mains plug. It is therefore ideally suited for mobile use in gardens and hobby areas.
Operating Data
Fluid media: Water 100 %
Fluid temperature: 20.00 °C
Fluid concentration: 100.00 %
Requested flow:
Requested head:
Max. delivery head: 40.20 m
Product data
Maximum operating pressure: 6 bar
Min. fluid temperature: 5 °C
Max. fluid temperature: 35 °C
Max. ambient temperature: 40 °C
Motor data
Mains connection: 1~230V/50 Hz
Voltage tolerance: +-6 %
Power factor: 0.98
Rated power: 0.75 kW
Rated current: 4.9 A
Rated speed: 2,900 1/min
Insulation class: B
Protection class: IP44
Materials
Pump housing: 1.4301
Impeller: 1.4301
Shaft: 1.4305
Shaft seal: CVPFF
Gasket material: NBR
Installation dimensions
Pipe connection on the suction side: G 1, PN 10
Pipe connection on the discharge side: G 1, PN 10
Ordering information
Brand: Wilo
Product description: Jet FWJ 203-EM/3-2
Net weight, approx.: 12.1 kg
Article number: 4265610
