| Product name | JP 5-48 PM1 |
| Product No | 99463901 |
| EAN number | 5713829542716 |
| Rated flow | 5 m³/h |
| Rated head | 45.6 m |
| Primary shaft seal | BBVP |
| Code for shaft seal | BBVP |
| Approvals | RCM |
| Curve tolerance | ISO9906:2012 3B |
| Pump version | A |
| Model | A |
| Adjustable start pressure (Yes/No) | N |
| Start pressure | 1.5 bar |
| Pump housing | Stainless steel |
| Impeller | Composite |
| Material code | A |
| Range of ambient temperature | 0 .. 40 °C |
| Maximum operating pressure | PN 6 bar |
| Pipe connection standard | ISO 228-1 |
| Type of inlet connection | G(F) |
| Type of outlet connection | G(F) |
| Size of inlet connection | 1 inch |
| Size of outlet connection | 1 inch |
| Pressure rating for connection | PN 6 |
| Pumped liquid | Water |
| Liquid temperature range | 0 .. 40 °C |
| Selected liquid temperature | 20 °C |
| Density | 998.2 kg/m³ |
| Power input P1 | 1490 W |
| Rated power – P2 | 1 kW |
| Mains frequency | 50 Hz |
| Rated voltage | 1 x 230 V |
| Rated current | 6.6 A |
| Starting current | 27.9 A |
| Rated speed | 2800 rpm |
| Capacitor size – run | 25 µF/450 V |
| Enclosure class (IEC 34-5) | IP44 |
| Insulation class (IEC 85) | F |
| Length of cable | 1.5 m |
| Power plug | Australian plug |
| Type of connector | Type I (AS/NZS 3112) |
| Net weight | 13.5 kg |
| Gross weight | 16.6 kg |
| Environmental approvals | WEEE |

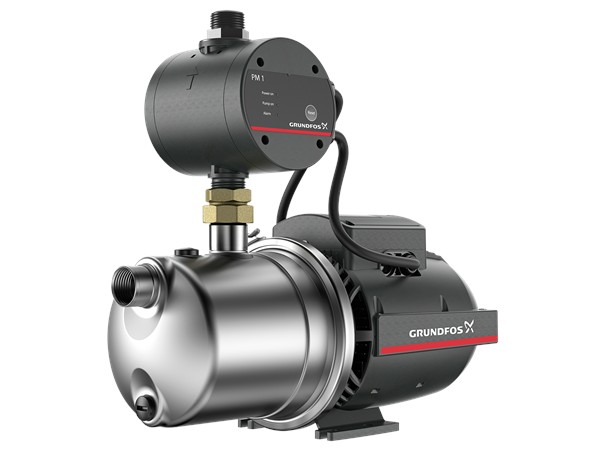

JP 5-48 PM1
