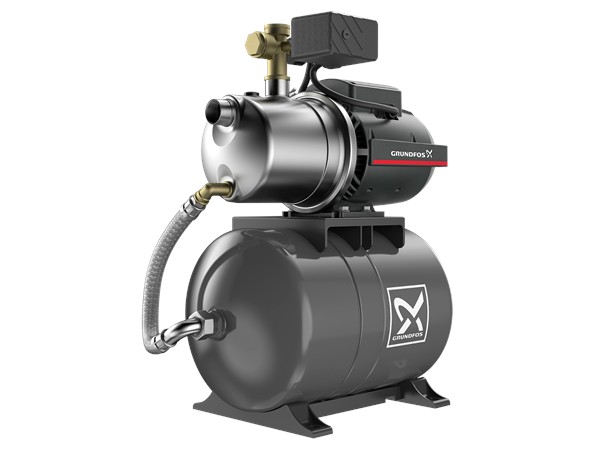

| Product name | JP 5-48 PT-H |
| Product No | 99656250 |
| EAN number | 5713832527533 |
| Rated flow | 5 m³/h |
| Rated head | 45.6 m |
| Primary shaft seal | BBVP |
| Code for shaft seal | BBVP |
| Approvals | CE,EAC |
| Curve tolerance | ISO9906:2012 3B |
| Pump version | A |
| Model | A |
| Adjustable start pressure (Yes/No) | N |
| Start pressure | 2.2 bar |
| Pump housing | Stainless steel |
| Impeller | Composite |
| Material code | A |
| Range of ambient temperature | 0 .. 40 °C |
| Maximum operating pressure | PN 6 bar |
| Pipe connection standard | ISO 228-1 |
| Type of inlet connection | G(F) |
| Type of outlet connection | G(F) |
| Size of inlet connection | 1 inch |
| Size of outlet connection | 1 inch |
| Pressure rating for connection | PN 6 |
| Pumped liquid | Water |
| Liquid temperature range | 0 .. 40 °C |
| Selected liquid temperature | 20 °C |
| Density | 998.2 kg/m³ |
| Power input P1 | 1390 W |
| Rated power – P2 | 1 kW |
| Mains frequency | 50 Hz |
| Rated voltage | 1 x 220-240 V |
| Rated current | 6.1 A |
| Starting current | 28.4 A |
| Rated speed | 2870 rpm |
| Capacitor size – run | 35 µF/450 V |
| Enclosure class (IEC 34-5) | IP44 |
| Insulation class (IEC 85) | F |
| Length of cable | 1.5 m |
| Power plug | SCHUKO |
| Type of connector | Type E/F (CEE7/7) |
| Tank volume | 20 l |
| Net weight | 19 kg |
| Gross weight | 22 kg |
| Danish VVS No. | 385534250 |
| Environmental approvals | WEEE |
JP 5-48 PT-H
