| Product name | MAGNA3 50-150 F |
| Product No | 97924285 |
| EAN number | 5710626493609 |
| Rated flow | 20.27 m³/h |
| Rated head | 7.388 m |
| Maximum head | 150 dm |
| TF class | 110 |
| Approvals | CE,VDE,EAC,MOROCCO,UKCA,TSE,RCM,UkrSEPRO |
| Model | E |
| Pump housing | Cast iron |
| Impeller | Composite |
| Range of ambient temperature | 0 .. 40 °C |
| Maximum operating pressure | 10 bar |
| Type of connection | DIN |
| Size of connection | DN 50 |
| Pressure rating for connection | PN 6/10 |
| Port-to-port length | 280 mm |
| Pumped liquid | Water |
| Liquid temperature range | -10 .. 110 °C |
| Selected liquid temperature | 60 °C |
| Density | 983.2 kg/m³ |
| Maximum power input – P1 | 601 W |
| P1 min. | 22 W |
| Mains frequency | 50 / 60 Hz |
| Rated voltage | 1 x 230 V |
| Minimum current consumption | 0.23 A |
| Maximum current consumption | 2.75 A |
| Maximum speed | 4680 rpm |
| Enclosure class (IEC 34-5) | X4D |
| Insulation class (IEC 85) | F |
| Energy (EEI) | 0.18 |
| Net weight | 18.9 kg |
| Gross weight | 20.5 kg |
| Shipping volume | 0.046 m³ |
| Danish VVS No. | 380953515 |
| Swedish RSK No. | 5732497 |
| Finnish LVI No. | 4615156 |
| Norwegian NRF no. | 9042676 |
| Environmental approvals | CN ROHS,WEEE |

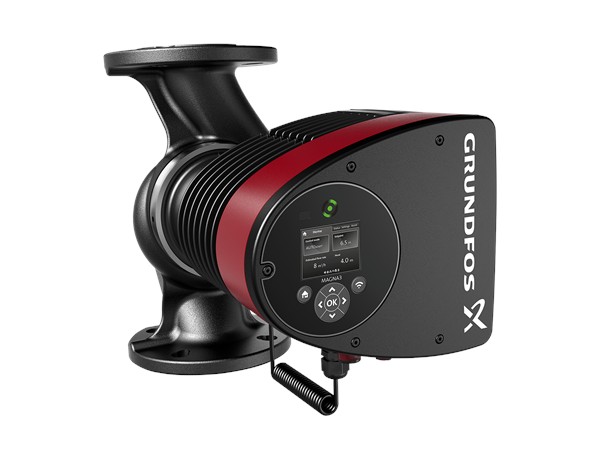

MAGNA3 50-150 F
