| Product name | MTB 65-200/199 A-F-A-BQQV |
| Product No | 98768040 |
| EAN number | 5712601113052 |
| Rated flow | 60 m³/h |
| Rated head | 42.1 m |
| Actual impeller diameter | 199 mm |
| Primary shaft seal | BQQV |
| Curve tolerance | ISO9906:2012 3B |
| Pump version | A |
| Pump housing | Cast iron |
| Impeller | Cast iron |
| Material code | A |
| Maximum ambient temperature | 55 °C |
| Maximum operating pressure | 16 bar |
| Flange standard | DIN |
| Pump inlet | DN 80 |
| Pump outlet | DN 65 |
| Pressure rating | PN 16 |
| Connect code | F |
| Pumped liquid | Water |
| Liquid temperature range | 0 .. 90 °C |
| Selected liquid temperature | 20 °C |
| Density | 998.2 kg/m³ |
| Motor type | INNOMOTICS |
| Rated power – P2 | 15 kW |
| Mains frequency | 50 Hz |
| Rated voltage | 3 x 380-420D/660-725Y V |
| Rated current | 29,0-26,0/17,0-15,0 A |
| Starting current | 840 % |
| Cos phi – power factor | 0.86 |
| Rated speed | 2955 rpm |
| IE efficiency | IE3 91,9% |
| IE Efficiency class | IE3 |
| Motor efficiency at full load | 91.9 % |
| Motor efficiency at 3/4 load | 92.3 % |
| Motor efficiency at 1/2 load | 91.6 % |
| Number of poles | 2 |
| Enclosure class (IEC 34-5) | IP55 |
| Insulation class (IEC 85) | F |
| Built-in motor protection | PTC |
| Motor No | 83U15426 |
| Motor range | Standard |
| Net weight | 154 kg |
| Gross weight | 185 kg |
| Shipping volume | 0.724 m³ |

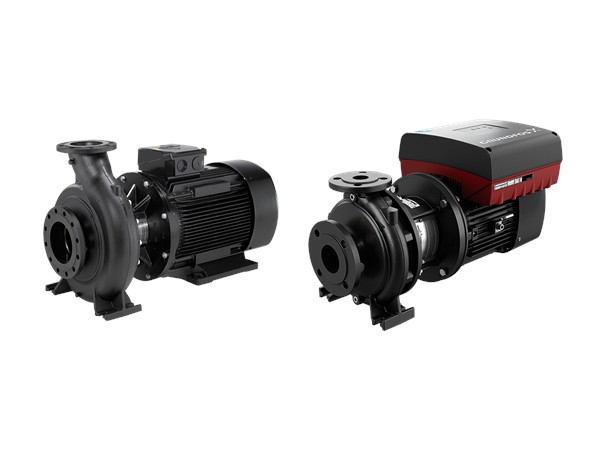

MTB 65-200/199 A-F-A-BQQV
