| Product name | NBE 40-125/142 ASASF2BVSBQQVLWB |
| Product No | 99534497 |
| EAN number | 5713830667873 |
| Pump speed on which pump data are based | 2898 rpm |
| Rated flow | 45.47 m³/h |
| Rated head | 22.17 m |
| Actual impeller diameter | 142 mm |
| Nominal impeller diameter | 125 |
| Shaft seal arrangement | Single |
| Primary shaft seal | BQQV |
| Shaft diameter | 24 mm |
| Code for shaft seal | BQQV |
| Curve tolerance | ISO9906:2012 3B2 |
| Pump version | AS |
| Bearing design | Standard |
| Pump housing | Cast iron |
| Wear ring | Brass |
| Impeller | Bronze |
| Internal pump house coating | CED |
| Material code | B |
| Code for rubber | V |
| Shaft | Stainless steel |
| Maximum ambient temperature | 50 °C |
| Maximum operating pressure | 16 bar |
| Pipe connection standard | EN 1092-2 |
| Size of inlet connection | DN 65 |
| Size of outlet connection | DN 40 |
| Pressure rating for connection | PN 16 |
| Bearing lubrication | Grease |
| Pump housing with feet (Yes/No) | Yes |
| Support block (Yes/No) | Y |
| Connect code | F2 |
| Pumped liquid | Water |
| Liquid temperature range | -10 .. 90 °C |
| Selected liquid temperature | 20 °C |
| Density | 998.2 kg/m³ |
| Rated power – P2 | 5.5 kW |
| Mains frequency | 50 Hz |
| Rated voltage | 3 x 380-500 V |
| Rated current | 10.3-8.20 A |
| Cos phi – power factor | 0.92-0.88 |
| Rated speed | 360-4000 rpm |
| IE Efficiency class | IE5 |
| Motor efficiency at full load | 92.7 % |
| Number of poles | 2 |
| Enclosure class (IEC 34-5) | IP55 |
| Insulation class (IEC 85) | F |
| Built-in motor protection | ELEC |
| Motor No | 93057187 |
| Mount. design. acc. IEC 34-7 | IM V1/B5 |
| Bearing insulation type N-end | Steel Bearing |
| Control panel | HMI300 – Advanced |
| Function Module | FM310 – Advanced |
| Frequency converter | Built-in |
| Pressure sensor | Y |
| Type of pressure sensor | Differential |
| Minimum efficiency index, MEI ≥ | 0.70 |
| Net weight | 71 kg |
| Gross weight | 88 kg |
| Shipping volume | 0.315 m³ |
| Language on pump nameplate | GB |

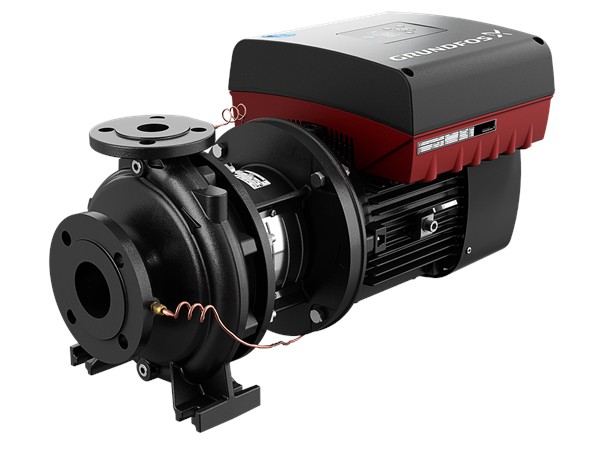

NBE 40-125/142 ASASF2BVSBQQVLWB
