| Product name | NKG 100-80-125/144 VAA1F2LESBQQELW1 |
| Product No | 92894353 |
| EAN number | 5715121169943 |
| Pump speed on which pump data are based | 2930 rpm |
| Rated flow | 65.47 m³/h |
| Pump with motor (Yes/No) | Y |
| Rated head | 9.391 m |
| Actual impeller diameter | 144 mm |
| Nominal impeller diameter | 125 |
| Type of impeller | SuperVortex |
| Max. Particle | 20 mm |
| Primary shaft seal | BQQE |
| Shaft diameter | 24 mm |
| Code for shaft seal | BQQE |
| Mechanical seal type | Single |
| Curve tolerance | ISO9906:2012 3B2 |
| Pump version | A1 |
| Bearing design | Standard |
| Pump housing | Stainless steel |
| Flange | Cast iron |
| Impeller | Stainless steel |
| Internal pump house coating | No coating |
| Material code | L |
| Code for rubber | E |
| Shaft | Stainless steel |
| Maximum ambient temperature | 60 °C |
| Maximum operating pressure | 16 bar |
| Pipe connection standard | EN 1092-1 |
| Type of inlet connection | DIN |
| Type of outlet connection | DIN |
| Size of inlet connection | DN 100 |
| Size of outlet connection | DN 80 |
| Pressure rating for connection | PN 16 |
| Coupling type | Flexible w/o spacer |
| Base frame design | EN/ISO |
| Code for base frame | 5 ST |
| Grouting (Yes/No) | N |
| Connect code | F |
| Pumped liquid | Water |
| Liquid temperature range | -25 .. 120 °C |
| Selected liquid temperature | 20 °C |
| Density | 998.2 kg/m³ |
| Motor type | 132SC |
| Rated power – P2 | 5.5 kW |
| Mains frequency | 50 Hz |
| Rated voltage | 3 x 380-415D V |
| Rated current | 11 A |
| Starting current | 1080-1180 % |
| Cos phi – power factor | 0.87-0.82 |
| Rated speed | 2920-2940 rpm |
| IE Efficiency class | IE3 |
| Motor efficiency at full load | 89.2 % |
| Motor efficiency at 3/4 load | 90.0-89.8 % |
| Motor efficiency at 1/2 load | 89.6-88.4 % |
| Number of poles | 2 |
| Enclosure class (IEC 34-5) | 55 Dust/Jetting |
| Insulation class (IEC 85) | F |
| Built-in motor protection | PTC |
| Motor No | 87322374 |
| Bearing insulation type N-end | Steel Bearing |
| Frequency converter | None |
| Pressure sensor | N |
| Net weight | 172 kg |
| Gross weight | 193 kg |
| Shipping volume | 0.395 m³ |
| Language on pump nameplate | GB |

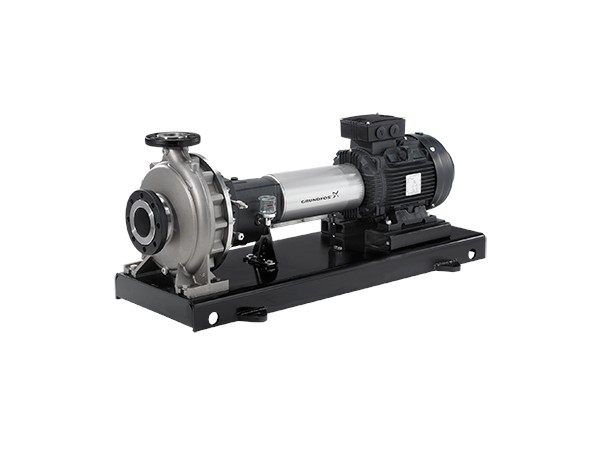

NKG 100-80-125/144 VAA1F2LESBQQELW1
