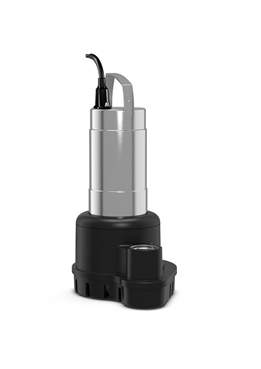

Submersible pump for stationary and portable wet well installation in intermittent operation.
For pumping in commercial areas of:
– Sewage not containing faeces
– Wastewater (with small amounts of sand and gravel)
– Wastewater, slightly acidic with a pH value > 4.5
Sewage pumping according to (DIN) EN 12050
The pumps meet the requirements of EN 12050-2.
Wastewater pump with open multi-channel impeller and vertical threaded connection. Hydraulics housing and impeller made of copolymer. Surface-cooled 3~ motor with thermal motor monitoring. Oil-filled sealing chamber with double sealing. Stainless steel motor housing. Detachable connection cable with CEE plug. Float switch and thermal motor monitoring connected to the CEE plug.
Operating Data
Fluid media: Water 100 %
Fluid temperature: 20.00 °C
Requested flow:
Requested head:
Max. delivery head: 17.21 m
Product data
Hydraulics type: Open multi-channel impeller
Free ball passage of the hydraulics: 10 mm
Maximum operating pressure: 1.89 bar
Max. immersion depth: 7 m
Fluid temperature: 3…40 °C
Max. fluid temperature: 40 °C
Motor data
Mains connection: 3~400V/50 Hz
Voltage tolerance: +-10 %
Power factor: 0.57
Rated power: 1.1 kW
Power consumption: 1.57 kW
Rated current: 4 A
Starting current: 20.5 A
Activation type: Direct On Line (DOL)
Rated speed: 2,865 1/min
Max. switching frequency: 60 1/h
Insulation class: F
Protection class: IP68
Operating mode (immersed): S1
Operating mode (non-immersed): S2-15 min, S3-10%
Cable
Connection cable length: 10 m
Cable type: H07RN-F
Cable cross-section: 6G1
Mains plug: CEE 16A, 3P+N+PE, 6h
Type of connection cable: Detachable
Equipment/function
Float switch: Yes
Explosion protection type: –
Motor protection: Bimetall
Materials
Pump housing: PP-GF30
Impeller: PP-GF30
Shaft: 1.4401
Sealing on pump side: QQPGG
Sealing on motor side: NBR
Gasket material: NBR
Motor housing: 1.4301
Installation dimensions
Pipe connection on the suction side: , –
Pipe connection on the discharge side: G 2, PN 10
Ordering information
Brand: Wilo
Product description: Padus UNI-M05A/T011-540/A
Net weight, approx.: 19 kg
Article number: 6096625
