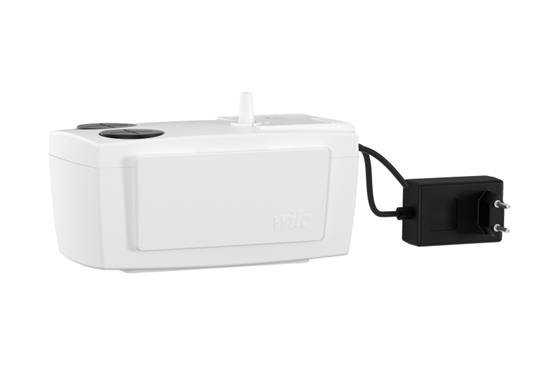

Condensate lifting unit for collecting and pumping condensate from condensing boilers, cooling systems and air-conditioning systems. Ready-to-plug version with rotatable cover and motor. The inlets are fixed by adjustable rubber guides. The level control device of the condensate lifting unit is controlled via electrode level switching. An integrated non-return ball valve prevents the condensate from returning into the tank. Thanks to its modular design, the condensate lifting unit is compact, quiet and has lower power consumption. A visual alarm and an alarm contact (NC/NO contact) are integrated for operational reliability.
Special features/product advantages
– Higher operational reliability thanks to integrated visual alarm and alarm contact (NC/NO contact)
– Reliable level measurement via electrode level switching
– Easy installation thanks to Plug & Pump system with adaptable inlet and rotatable cover
– Quick and easy maintenance thanks to removable service cap and integrated non-return ball valve
– Energy savings due to low electricity consumption (≤ 20 W)
– Perfect integration into the customer environment thanks to its compact, modern construction and quiet operation (≤ 40 dBA)
Scope of delivery
– Condensate lifting unit with electrode level switching
– Tank, cover and service cap
– 1.5 m long electric cable, alarm contact
– Hose on the pressure side (Ø 8 mm, 5 m)
– Adjustable inlets (2 rubber guides Ø 2/32 mm)
– Screws (Ø 4 mm) and wall plugs for wall fixation
– Installation and operating instructions
Operating Data
Fluid media: Water 100 %
Fluid temperature: 20.00 °C
Requested flow:
Requested head:
Approved field of application
Fluid temperature: 5…60 °C
Ambient temperature: 5…40 °C
Motor data
Mains connection: 1~240V/50 Hz
Voltage tolerance: +-5 %
Rated power: 0.015 kW
Rated speed: 15,000 1/min
Rated current: 0.2 A
Insulation class: B
Protection class motor: IP20
Materials
Tank: ABS
Pump housing: ABS
Impeller: POM
Motor housing: ABS
Installation dimensions
Pipe connection on the suction side: Ø 18-40mm, –
Pipe connection on the discharge side: Ø 8-10mm, –
Ordering information
Brand: Wilo
Product description: Plavis 013-C-2G/GB
Net weight, approx.: 0.75 kg
Article number: 2548595
