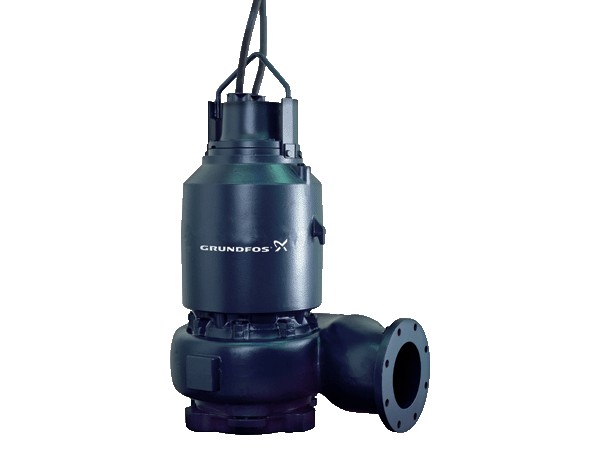

| Product name | S1.80.125.400.4.62H.H.374.G.N.D.513GPA |
| Product No | 96810429 |
| EAN number | 5713835735645 |
| Maximum flow | 110 l/s |
| Maximum head | 57.5 m |
| Actual impeller diameter | 374 mm |
| Max. Particle | 80 mm |
| Curve tolerance | ISO9906:2012 3B |
| Cooling jacket (Yes/No) | Y |
| Lifting height class | H |
| Pump housing | Cast iron |
| Impeller | Cast iron |
| Motor | Cast iron |
| Shaft seal | SIC |
| Secondary shaft seal | SIC-CARBON |
| Range of ambient temperature | 0 .. 40 °C |
| Type of connection | DIN |
| Size of inlet connection | DN 150 |
| Size of outlet connection | DN 125 |
| Pressure rating for connection | PN 10 |
| Maximum installation depth | 20 m |
| Inst dry/wet | D |
| Horizontal installation | 96787496 |
| Liquid temperature range | 0 .. 40 °C |
| Selected liquid temperature | 20 °C |
| Density | 998.2 kg/m³ |
| Frame size | 62 |
| Power input P1 | 49 kW |
| Rated power – P2 | 43 kW |
| Mains frequency | 50 Hz |
| Rated voltage | 3 x 415 V |
| Voltage tolerance | +10/-10 % |
| Max starts per hour | 15 |
| Rated current | 86/ A |
| Maximum current consumption | 86 A |
| Starting current | 437 A |
| Rated current at no load | 34 A |
| Rated speed | 1464 rpm |
| Motor efficiency at full load | 89 % |
| Motor efficiency at 3/4 load | 89 % |
| Motor efficiency at 1/2 load | 87 % |
| Number of poles | 4 |
| Method of start | Y/D |
| Enclosure class (IEC 34-5) | IP68 |
| Insulation class (IEC 85) | F |
| Explosion proof | no |
| Ex-protection standard | N THERM |
| Power cable type | H07RN-F AT |
| Length of power cable | 15 m |
| Cable description | 2X4X10MM2+1X7X1,5MM2 |
| Cable resistance | 1.91 mOhm/m |
| Winding resistance | 0.184 Ohm |
| Cos phi 1/1 | 0.79 |
| Cos phi 1/2 | 0.64 |
| Cos phi 3/4 | 0.76 |
| Moisture sensor | with moisture sensors |
| Water-in-oil sensor | without water-in-oil sensor |
| Net weight | 740 kg |
| Gross weight | 870 kg |
| Sales region | GPA |
S1.80.125.400.4.62H.H.374.G.N.D.513GPA
