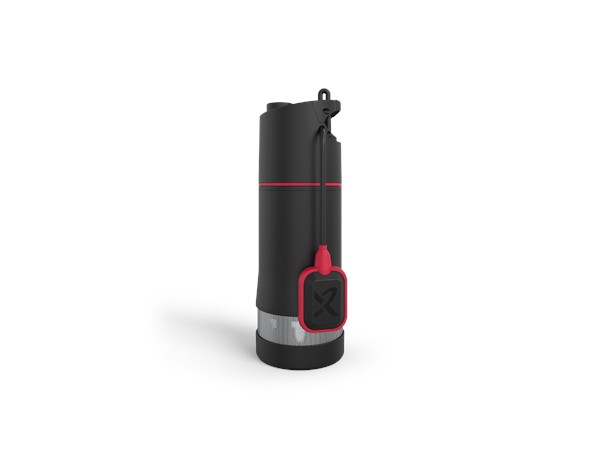

| Product name | SB 3-35 A |
| Product No | 92712333 |
| EAN number | 5715118518952 |
| Rated flow | 3.01 m³/h |
| Rated head | 29.2 m |
| Maximum head | 34 m |
| Impellers | 3 |
| Max. Particle | 1 mm |
| Approvals | CE |
| Curve tolerance | ISO9906:2012 3B |
| Return valve | NO |
| Pump housing | Composite |
| Impeller | Composite |
| Range of ambient temperature | -10 .. 50 °C |
| Type of inlet connection | STRAINER |
| Pump outlet | G 1″ |
| Pressure rating for connection | PN 6 |
| Maximum installation depth | 10 m |
| Pumped liquid | Water |
| Liquid temperature range | 0 .. 40 °C |
| Selected liquid temperature | 20 °C |
| Density | 998.2 kg/m³ |
| pH-value range | 4-9 |
| Power input P1 | 0.75 kW |
| Rated power – P2 | 0.47 kW |
| Mains frequency | 50 Hz |
| Rated voltage | 1 x 220-240 V |
| Rated current | 3.5 A |
| Starting current | 12 A |
| Cos phi | 0.934 |
| Rated speed | 2800 rpm |
| Capacitor size – run | 12 µF/450 V |
| Enclosure class (IEC 34-5) | X8 |
| Insulation class (IEC 85) | F |
| Ex-protection standard | YES |
| Length of cable | 15 m |
| Cable type | H07RN-F 3G1 |
| Power plug | Schuko plug |
| Float switch (Yes/No) | Y |
| Net weight | 12.2 kg |
| Gross weight | 13.2 kg |
| Shipping volume | 0.033 m³ |
| Danish VVS No. | 391361235 |
| Swedish RSK No. | 5858000 |
| Finnish LVI No. | 4822626 |
| Norwegian NRF no. | 9040065 |
SB 3-35 A
